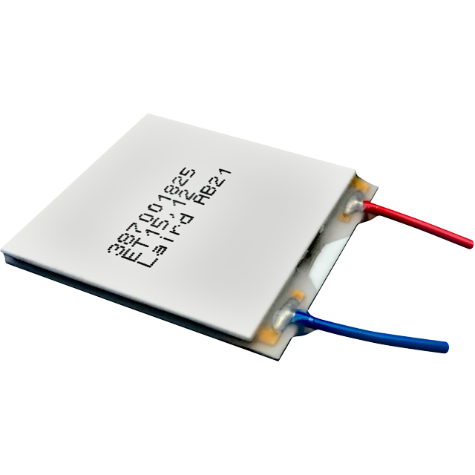

Specification	387001825

Current - Max	14.7 A
Delta Tmax	67 °C
Features	Lapped, Sealed, Lead Wires
Height	2.85 mm
Maximum Power Dissipation (Qmax)	126.2 W
Number of Stages	1
Operating Temperature	150 °C
Resistance	1.13 Ohms
Size / Dimension Length	44 mm
Size / Dimension Shape	Rectangular
Size / Dimension Width	40 mm
Type	TEC (Thermoelectric Cooler)
Voltage - Max	14.5 V

HiTemp ET Series

Thermoelectric Peltier Modules ET8,288,F2,5252,TA,R T,W6

Part	Type	Size / Dimension Shape	Size / Dimension Width	Size / Dimension Length	Resistance	Current - Max	Operating Temperature	Features	Delta Tmax	Number of Stages	Maximum Power Dissipation (Qmax)	Voltage - Max	Height
Tark Thermal Solutions 387001823	TEC (Thermoelectric Cooler)	Rectangular	24.56 mm	26.92 mm	2.22 Ohms	7.8 A	150 °C	Lapped Lead Wires Sealed	65 °C	1	69 W	16.9 V	1.96 mm
Tark Thermal Solutions 387001740	TEC (Thermoelectric Cooler)	Square	30 mm	30 mm						1			3.2 mm
Tark Thermal Solutions 387001838	TEC (Thermoelectric Cooler)	Rectangular	30 mm	34 mm	1.19 Ohms	6 A		Lapped Lead Wires Sealed	67 °C	1	29.8 W	8.5 V	3.81 mm
Tark Thermal Solutions 430680-582	TEC (Thermoelectric Cooler)	Rectangular	8.94 mm	11.38 mm						1			2.44 mm
Tark Thermal Solutions 387003011	TEC (Thermoelectric Cooler)
Tark Thermal Solutions 387001747	TEC (Thermoelectric Cooler)	Square	19.4 mm	19.4 mm			150 °C	Lead Wires Sealed Silicone RTV	77.9 °C	1	7.9 W	5.9 V	3.58 mm
Tark Thermal Solutions 387001828	TEC (Thermoelectric Cooler)	Rectangular	52 mm	56 mm	2.57 Ohms	15.4 A	150 °C	Lapped Lead Wires Sealed	67 °C	1	294.6 W	32.7 V	3.3 mm
Tark Thermal Solutions 430680-502	TEC (Thermoelectric Cooler)	Rectangular	6.5 mm	8.13 mm						1			2.44 mm
Tark Thermal Solutions 387001842	TEC (Thermoelectric Cooler)	Square	30 mm	30 mm						1			5.59 mm
Tark Thermal Solutions 387001835	TEC (Thermoelectric Cooler)	Square	40 mm	40 mm	2.88 Ohms	6 A	150 °C	Lapped Lead Wires Sealed	67 °C	1	53 W	16.9 V	3.81 mm
