4710.1256
ActiveSCHURTER Inc.
PWR ENT RCPT IEC320-2-2J PNL QC
4710.1256
ActiveSCHURTER Inc.
PWR ENT RCPT IEC320-2-2J PNL QC
Description
General part information
4710.1256

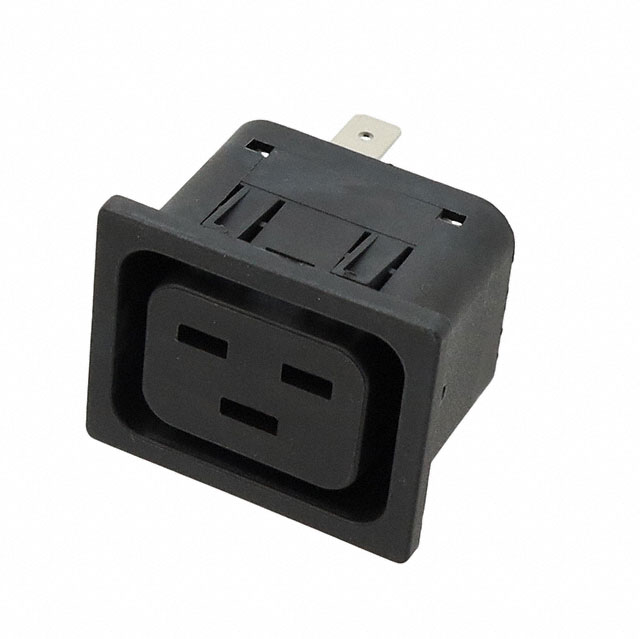

Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/J Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | 4710.1256 |
|---|---|
| Accomodates a Fuse | No |
| Approval Agency | cURus, CCC, ENEC |
| Connector Style | IEC 320-2-2/J |
| Connector Type | Receptacle, Female Sockets |
| Current Rating - Appliance Inlet | 16 A |
| Filter Type | Unfiltered, Commercial |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 3 |
| Panel Cutout Length | 37.6 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 29.5 mm |
| Termination | Quick Connect |
| Termination Probe Tip OD | 0.25 in |
| Voltage Rating - Appliance Inlet | 250 VAC |
