Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1613667 | ST Series |
|---|---|---|
| Accessory Type | - | Dust, Cap (Cover) |
| Color | - | Green, Yellow, White |
| Connector Type | - | Receptacle Housing |
| Contact Shape | - | Circular |
| Contact Size | - | 1 mm |
| Contact Type | - | Crimp |
| Fastening Type | - | Push-Twist |
| Features | - | Backshell, Water Resistant |
| For Use With/Related Products | - | M17 Signal and Power Plug-In Connector, External Thread, CLIPLINE UK Series |
| Housing Color | - | Silver |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Insert Material | - | Polyamide (PA66), Nylon 6/6 |
| Material | - | Plastic |
| Material - Insulation | - | Nylon, Polyamide (PA) |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Type | - | Free Hanging (In-Line) |
| Note | - | Contacts Not Included |
| Number of Levels | - | 1 |
| Number of Positions | - | 2 |
| Number of Positions | - | 1 |
| Number of Positions | - | 6 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Orientation | - | N |
| Shell Material | - | Gadolinium-Zinc |
| Shell Size - Insert | - | M17-7, M17 |
| Shielding | - | Shielded |
| Stripping Length | - | 12 mm |
| Stripping Length | - | 10 mm |
| Terminal - Width | - | 6.2 - 8.2 mm |
| Termination Style | - | Push In, Spring |
| Tool Type | Assembly Tool | Assembly Tool |
| Type | - | Ground, Earth, For Female Sockets, Step Bracket |
| Weight | 0.16 lb | 0.16 lb |
| Weight | 72.57 g | 72.57 g |
| Wire Gauge or Range - AWG | - | 24 - 28 AWG |
| Wire Gauge or Range - AWG | - | 8 - 10 AWG |
| Wire Gauge or Range - mm² | - | 6 - 10 mm² |
| Wire Gauge or Range - mm² | - | 0.08 - 0.2 mm² |
ST Series
DIN Rail Terminal Blocks ST 2.5-TWIN BK
| Part | Weight | Weight | Tool Type | Material Flammability Rating | Number of Positions | Stripping Length [x] | Type | Color | Terminal - Width [y] | Material - Insulation | Termination Style | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Number of Levels | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Fastening Type | Note | Contact Type | Contact Size | Contact Shape | Number of Positions [custom] | Number of Positions [custom] | Connector Type | Shell Size - Insert | Housing Color | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Orientation | Shielding | Ingress Protection | Features | Shell Material | Stripping Length | For Use With/Related Products | Accessory Type | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

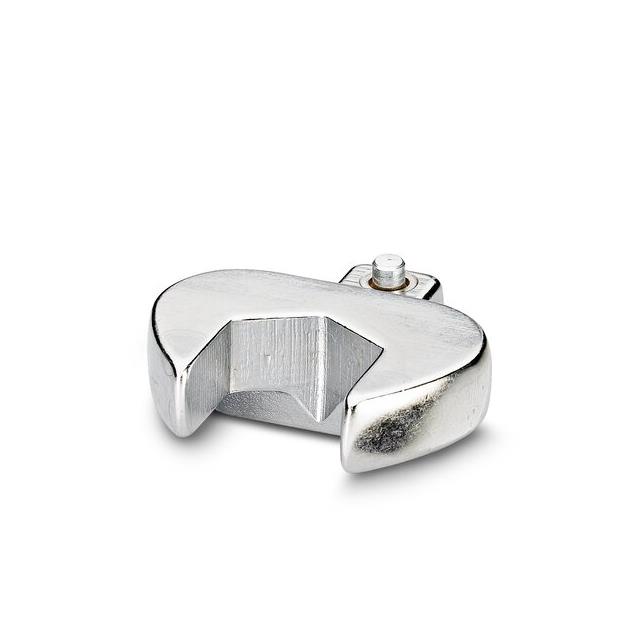

Phoenix Contact 1613667 | 0.16 lb | 72.57 g | Assembly Tool | ||||||||||||||||||||||||||||||||||||
Phoenix Contact 3038147 | UL94 V-0 | 2 | 12 mm | Ground, Earth | Green, Yellow | 8.2 mm | Nylon, Polyamide (PA) | Push In, Spring | 10 mm² | 0.2 mm² | 1 | 24 AWG | 8 AWG | ||||||||||||||||||||||||||
Phoenix Contact 1613583 | For Female Sockets | Push-Twist | Contacts Not Included | Crimp | 1 mm | Circular | 1 | 6 | Receptacle Housing | M17-7 | Silver | Polyamide (PA66), Nylon 6/6 | 125 °C | -40 °C | Free Hanging (In-Line) | N | Shielded | IP67 - Dust Tight, Waterproof | Backshell | Gadolinium-Zinc | |||||||||||||||||||
Phoenix Contact 3031416 | UL94 V-0 | Ground, Earth | Green, Yellow | 6.2 mm | Nylon, Polyamide (PA) | Push In, Spring | 6 mm² | 0.08 mm² | 1 | 28 AWG | 10 AWG | 10 mm | |||||||||||||||||||||||||||
Phoenix Contact 1607776 | White | M17 | Water Resistant | M17 Signal and Power Plug-In Connector, External Thread | Cap (Cover), Dust | Plastic | |||||||||||||||||||||||||||||||||
Phoenix Contact 0204110 | 2 | Step Bracket | CLIPLINE UK Series |
