RNF18FTE1K74
ActiveStackpole Electronics Inc
RES 1.74K OHM 1% 1/8W AXIAL
RNF18FTE1K74
ActiveStackpole Electronics Inc
RES 1.74K OHM 1% 1/8W AXIAL
Description
General part information
RNF18FTE1K74

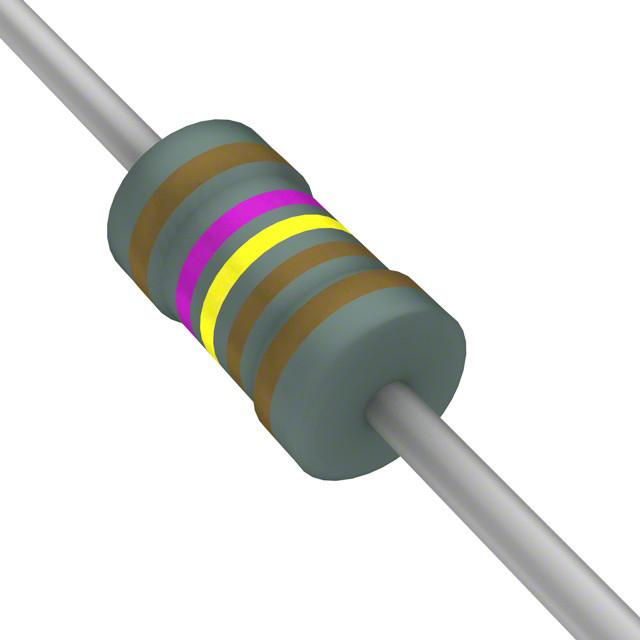

1.74 kOhms ±1% 0.125W, 1/8W Through Hole Resistor Axial Flame Retardant Coating, Safety Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RNF18FTE1K74 |
|---|---|
| Composition | Metal Film |
| Features | Flame Retardant Coating, Safety |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 0.125 W |
| Power (Watts) Options | 1/8W |
| Resistance | 1.74 kOhm |
| Size / Dimension Diameter | 0.071 in |
| Size / Dimension Length | 0.13 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 1 % |
