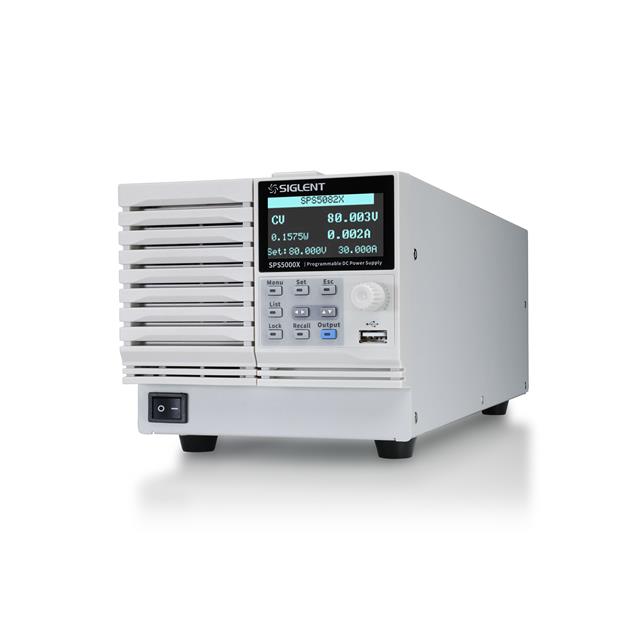

SPS5082X
ActiveSiglent Technologies NA, Inc.
80V/30A/720W,SINGLE CHANNEL SWIT
SPS5082X
ActiveSiglent Technologies NA, Inc.
80V/30A/720W,SINGLE CHANNEL SWIT
Description
General part information
SPS5082X
80V Output Bench (AC to DC) Power Supply LCD 30A Output 720W Features GPIB Interface, Memory, Over Temperature Protection (OTP), Programmable, Software, Switching, USB Interface
Technical Specifications
Parameters and characteristics for this part
| Specification | SPS5082X |
|---|---|
| Accuracy - Ammeter (Absolute) | 40 mA |
| Accuracy - Ammeter (Percent) | 0.1 % |
| Accuracy - Voltmeter (Absolute) | 10 mV |
| Accuracy - Voltmeter (Percent) | 0.1 % |
| Current - Output | 30 A |
| Current Regulation - Line | 32 mA |
| Current Regulation - Load | 32 mA |
| Display Type | LCD |
| Features | USB Interface, GPIB Interface, Programmable, Switching, Software, Memory, Over Temperature Protection (OTP) |
| Number of Outputs | 1 |
| Power (Watts) | 720 W |
| Size / Dimension Height | 4.882 in |
| Size / Dimension Length | 16.457 in |
| Size / Dimension Width | 5.591 in |
| Type | Bench (AC to DC) |
| Voltage - Output | 80 V |
| Voltage - Supply (Maximum) | 265 VAC |
| Voltage - Supply (Minimum) | 90 VAC |
| Voltage Regulation - Line (Absolute) | 40 mV |
| Voltage Regulation - Load | 40 mV |
