Specification	0791070024

Applications	General Purpose, Telecommunications, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Post	74.8 µin
Contact Length - Post	0.118 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.175 in
Insulation Material	Glass Filled, Thermoplastic
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	125 V

079107 Series

Part	Connector Type	Number of Rows	Contact Type	Mounting Type	Number of Positions Loaded	Insulation Color	Voltage Rating	Contact Length - Post	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Number of Positions	Insulation Height	Contact Finish - Post	Style	Contact Finish Thickness - Mating	Row Spacing - Mating	Pitch - Mating	Current Rating	Fastening Type	Termination	Applications	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Contact Material	Voltage Rating (Type)	Material Flammability Rating
Molex 0791077210	Receptacle	2	Female Socket	Through Hole	All	Black	125 V	0.075 in	125 °C	-55 °C	Gold	22	0.175 in	Tin	Board Board or Cable	15 µin	0.079 in	0.079 in	1 A	Push-Pull	Solder	Automotive General Purpose Telecommunications	74.8 µin	Square	Glass Filled Thermoplastic	Phosphor Bronze

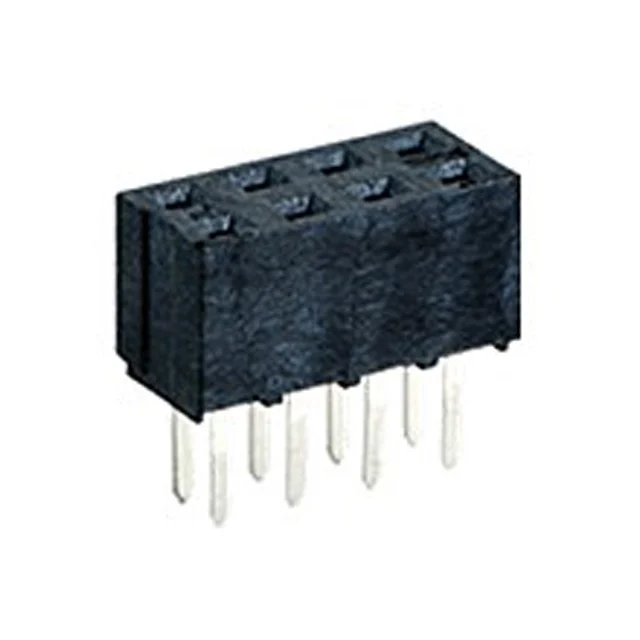

Molex 0791077126	Receptacle	2	Female Socket	Through Hole	All	Black	125 V	0.118 in	125 °C	-55 °C	Gold	4	0.175 in	Tin	Board	1.97 µin	0.079 in	0.079 in	5.25 A	Push-Pull	Solder						DC	UL94 V-0
Molex 0791077271	Receptacle	2	Female Socket	Through Hole	All	Black	125 V	0.075 in	125 °C	-55 °C	Gold	44	0.175 in	Tin	Board Board or Cable	30 µin	0.079 in	0.079 in	1 A	Push-Pull	Solder	Automotive General Purpose Telecommunications	74.8 µin	Square	Glass Filled Thermoplastic	Phosphor Bronze
Molex 0791077274	Receptacle	2	Female Socket	Through Hole	All	Black	125 V	0.075 in	125 °C	-55 °C	Gold	50	0.175 in	Tin	Board Board or Cable	30 µin	0.079 in	0.079 in	1 A	Push-Pull	Solder	Automotive General Purpose Telecommunications	74.8 µin	Square	Glass Filled Thermoplastic	Phosphor Bronze
Molex 0791070006	Receptacle	2	Female Socket	Through Hole	All	Black	125 V	0.118 in	125 °C	-55 °C	Gold	14	0.175 in	Tin-Lead	Board Board or Cable	15 µin	0.079 in	0.079 in	1 A	Push-Pull	Solder	Automotive General Purpose Telecommunications	74.8 µin	Square	Glass Filled Thermoplastic	Phosphor Bronze
Molex 0791077072	Receptacle	2	Female Socket	Through Hole	All	Black	125 V	0.118 in	125 °C	-55 °C	Gold	46	0.175 in	Tin	Board Board or Cable	30 µin	0.079 in	0.079 in	1 A	Push-Pull	Solder	Automotive General Purpose Telecommunications	74.8 µin	Square	Glass Filled Thermoplastic	Phosphor Bronze
Molex 0791070014	Receptacle	2	Female Socket	Through Hole	All	Black	125 V	0.118 in	125 °C	-55 °C	Gold	30	0.175 in	Tin-Lead	Board Board or Cable	15 µin	0.079 in	0.079 in	1 A	Push-Pull	Solder	Automotive General Purpose Telecommunications	74.8 µin	Square	Glass Filled Thermoplastic	Phosphor Bronze
Molex 0791077269	Receptacle	2	Female Socket	Through Hole	All	Black	125 V	0.075 in	125 °C	-55 °C	Gold	40	0.175 in	Tin	Board Board or Cable	30 µin	0.079 in	0.079 in	1 A	Push-Pull	Solder	Automotive General Purpose Telecommunications	74.8 µin	Square	Glass Filled Thermoplastic	Phosphor Bronze
Molex 0791070002	Receptacle	2	Female Socket	Through Hole	All	Black	125 V	0.118 in	125 °C	-55 °C	Gold	6	0.175 in	Tin-Lead	Board Board or Cable	15 µin	0.079 in	0.079 in	1 A	Push-Pull	Solder	Automotive General Purpose Telecommunications	74.8 µin	Square	Glass Filled Thermoplastic	Phosphor Bronze
Molex 0791077023	Receptacle	2	Female Socket	Through Hole	All	Black	125 V	0.118 in	125 °C	-55 °C	Gold	48	0.175 in	Tin	Board Board or Cable	15 µin	0.079 in	0.079 in	1 A	Push-Pull	Solder	Automotive General Purpose Telecommunications	74.8 µin	Square	Glass Filled Thermoplastic	Phosphor Bronze
