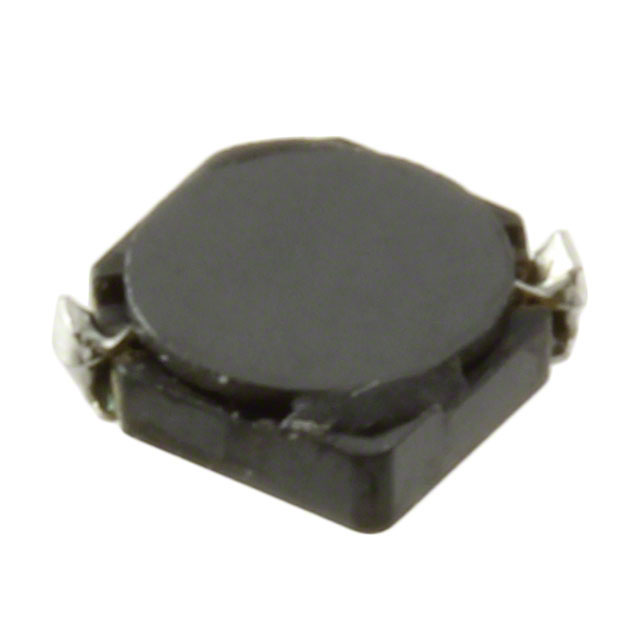

CDRH3D11NP-100NC
ActiveSumida America Components Inc.
FIXED IND 10UH 900MA 240MOHM SMD
CDRH3D11NP-100NC
ActiveSumida America Components Inc.
FIXED IND 10UH 900MA 240MOHM SMD
Description
General part information
CDRH3D11NP-100NC
10 µH Shielded Inductor 900 mA 240mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDRH3D11NP-100NC |
|---|---|
| Current - Saturation (Isat) | 0.28 mA |
| Current Rating | 900 mA |
| DC Resistance (DCR) (Max) | 240 mOhm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.15 in |
| Size / Dimension Width | 0.15 in |
| Tolerance | 30 % |
