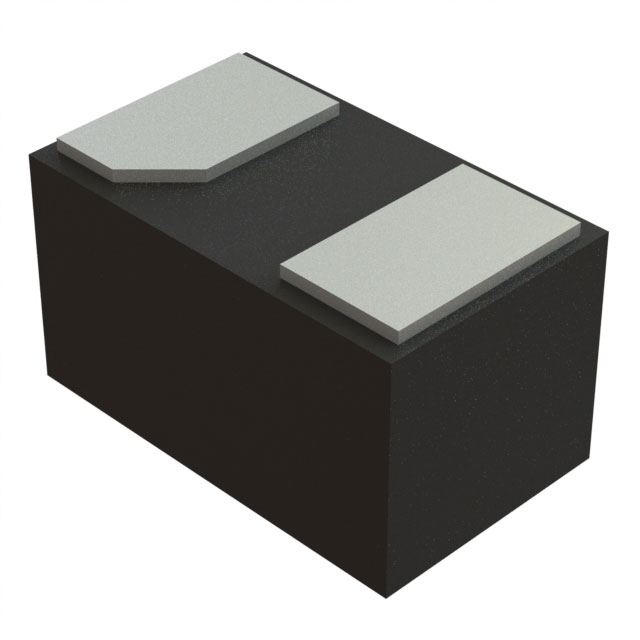

U-DFN1006-2 (Type B)

D3V3HN1B2LP-7B

Active
Diodes Inc

ESD PROTECTION DIODE, 3.3V, U-DFN1006 ROHS COMPLIANT: YES

Find alt
U-DFN1006-2 (Type B)

D3V3HN1B2LP-7B

Active
Diodes Inc

ESD PROTECTION DIODE, 3.3V, U-DFN1006 ROHS COMPLIANT: YES

Find alt

Description

General part information

D3V3HN1B2LP Series

This new generation TVS is designed to protect sensitive electronics from the damage due to ESD and surge. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.

Technical Specifications

Parameters and characteristics for this part

SpecificationD3V3HN1B2LP-7B
ApplicationsGeneral Purpose
Bidirectional Channels1
Capacitance140 pF
Current - Peak Pulse70 A
Mounting TypeSurface Mount
Operating Temperature (Max)150 °C
Operating Temperature (Min)-55 °C
Package / Case0402 (1006 Metric)
Package NameU-DFN1006-2 (Type B)
Power - Peak Pulse595 W
Power Line ProtectionNo
TypeZener
Voltage - Breakdown (Min)3.8 V
Voltage - Clamping (Max) (Typ)8.5 V
Voltage - Reverse Standoff (Max)3.3 V
