DCPDB09MSC1

Active

Switchcraft Inc.

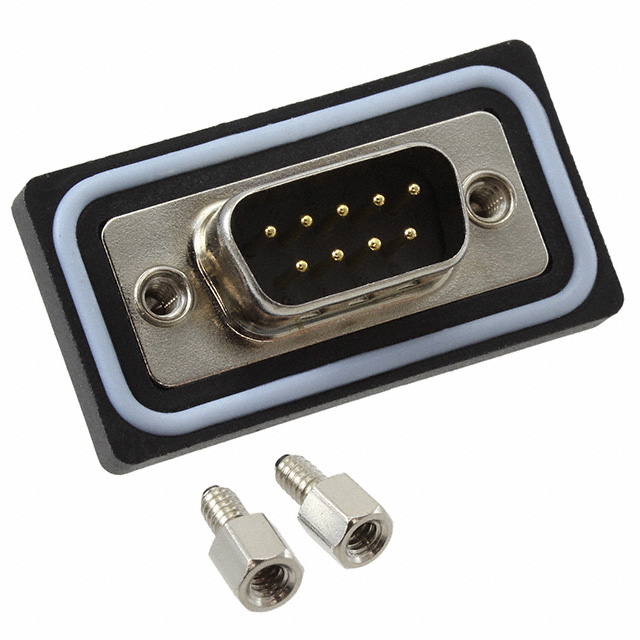

CONN D-SUB PLUG 9POS PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN D-SUB PLUG 9POS PNL MNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Plug, Male Pins Connector

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	DCPDB09MSC1	DCPDB0 Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Dielectric Material	Thermoplastic	Thermoplastic
Features	Gasket	Gasket
Flange Feature	Female Screwlock, Mating Side	Female Screwlock, Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	9	9
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Size, Connector Layout [custom]	DE, E	DE, E
Shell Size, Connector Layout [custom]	1	1
Wire Gauge [Max]	26 AWG	26 AWG
Wire Gauge [Min]	22 AWG	22 AWG

CONN D-SUB SKT 9 POS SOLDER CUP ST PANEL MOUNT 9 TERMINAL 1 PORT

Part	Number of Positions	Contact Finish	Current Rating (Amps)	Features	Connector Style	Dielectric Material	Color	Ingress Protection	Material Flammability Rating	Contact Material	Connector Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Type	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]
Switchcraft Inc. DCPDB09FSC1	9	Gold	5 A	Gasket	D-Sub	Thermoplastic	Black	IP67 - Dust Tight, Waterproof	UL94 V-0	Copper Alloy	Receptacle, Female Sockets	22 AWG	26 AWG	Signal	2	DE, E	1	Female Screwlock, Mating Side	85 °C	-55 °C
Switchcraft Inc. DCPDB09MSC1	9	Gold	5 A	Gasket	D-Sub	Thermoplastic	Black	IP67 - Dust Tight, Waterproof	UL94 V-0	Copper Alloy	Male Pins, Plug	22 AWG	26 AWG	Signal	2	DE, E	1	Female Screwlock, Mating Side	85 °C	-55 °C
