Description
General part information

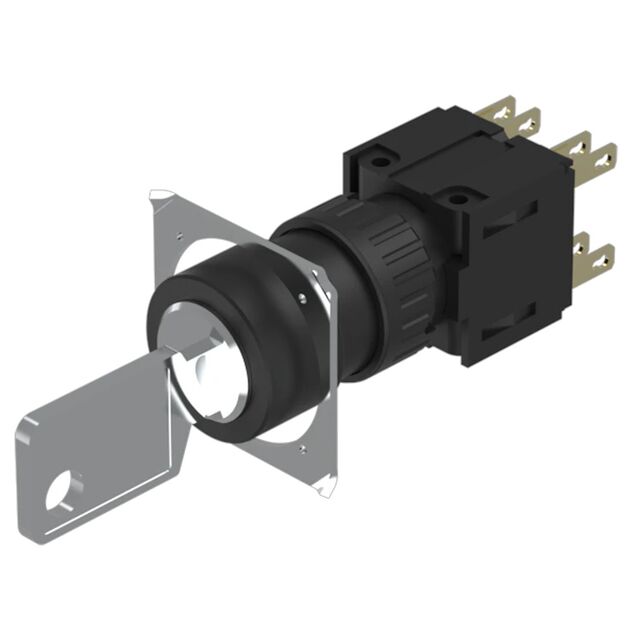

51-377.F22DF
Keylock Switch 3 Position 4PST-2NO/2NC 5A (AC) 250 VAC DC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 51-377.F22DF |
|---|---|
| Actuator Type | Flat Key |
| Angle of Throw | 42 ° |
| Circuit | 4PST-2NO/2NC |
| Contact Finish | Gold |
| Contact Material | Silver |
| Current Rating | 5 A |
| Depth Behind Flange | 50 mm |
| Mounting Type | Panel Mount |
| Number of Positions | 3 |
| Panel Cutout Diameter | 22.3 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.110") | 0.11 in |
| Removable Positions Count | 2 |
| Switch Function | On-Off, Off-On |
| Termination Style | Quick Connect, Solder |
| Voltage Rating - AC | 250 V |
