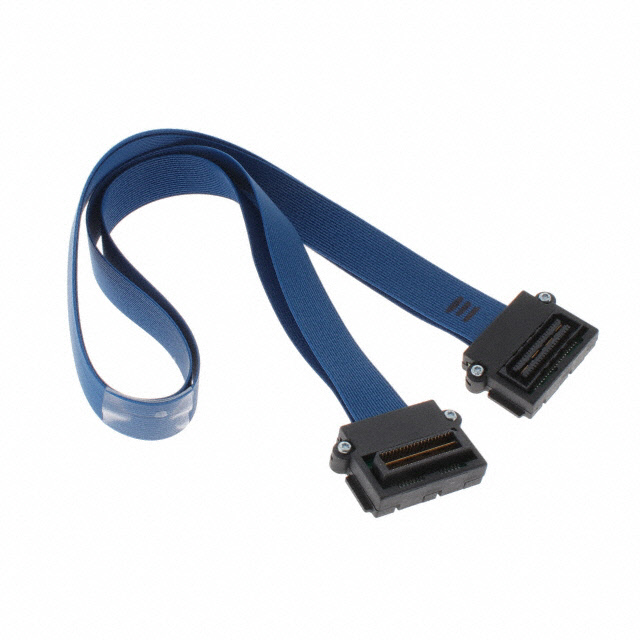

EQCD-020-15.80-STR-TTL-1
ActiveSamtec Inc.
"0.80 MM Q STRIP® COAX CABLE ASSEMBLY\/
Deep-Dive with AI
Search across all available documentation for this part.
EQCD-020-15.80-STR-TTL-1
ActiveSamtec Inc.
"0.80 MM Q STRIP® COAX CABLE ASSEMBLY\/
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EQCD-020-15.80-STR-TTL-1 |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Blue |
| Connector Type | Socket to Plug |
| Contact Finish | Gold |
| Features | Screw Lock |
| Length | 1.32 ft |
| Length | 401.32 mm |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch - Cable | 0.016 in |
| Pitch - Cable | 0.4 mm |
| Pitch - Connector | 0.8 mm |
| Pitch - Connector | 0.031 in |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EQCD-020 Series
40 Position Cable Assembly Rectangular Socket to Plug 1.32' (401.32mm)
