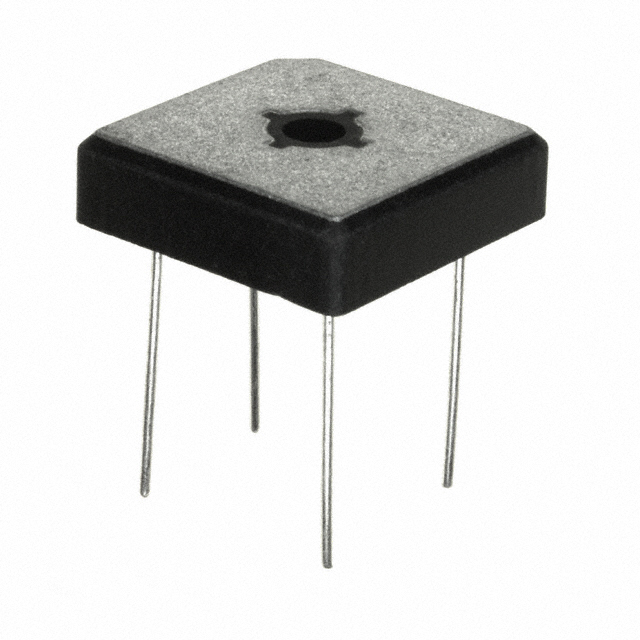

GBPC5004W-G

Active

Comchip Technology

BRIDGE RECT 1P 400V 50A GBPC-W

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1P 400V 50A GBPC-W

Technical Specifications

Parameters and characteristics for this part

Specification	GBPC5004W-G

Current - Average Rectified (Io)	50 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	GBPC-W, 4-Square
Supplier Device Package	GBPC-W
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	400 V

BRIDGE RECT 1P 400V 50A GBPC-W

Part	Mounting Type	Diode Type	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)	Package / Case	Voltage - Forward (Vf) (Max) @ If	Technology	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]
Comchip Technology GBPC5004W-G	Through Hole	Single Phase	10 µA	400 V	50 A	4-Square, GBPC-W	1.1 V	Standard	GBPC-W	-55 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 3.64

General part information

Bridge Rectifier Single Phase Standard 400 V Through Hole GBPC-W

Technical documentation and resources

No documents available
