Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 67.53 | |
| 10 | $ 62.13 | |||
| 50 | $ 57.40 | |||
| 100 | $ 54.70 | |||
General part information

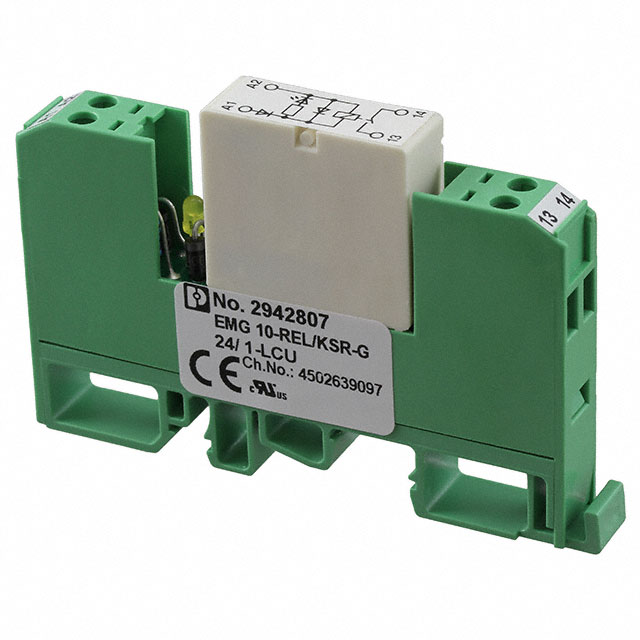

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil DIN Rail
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 2942807 |
|---|---|
| Approval Agency | UL, EAC, cULus |
| Coil Current | 21 mA |
| Coil Resistance | 1.14 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Features | Socket Included, Diode, Lighted Indicator |
| Load - Max Switching | 140 W, 1500 VA |
| Mounting Type | DIN Rail |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Release Time | 11 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Screw Terminal |
RELAY GEN PURPOSE SPST 6A 24V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Mounting Type | Load - Max Switching | Contact Material | Release Time | Switching Voltage | Coil Current | Coil Voltage | Operate Time | Approval Agency | Contact Form | Relay Type | Termination Style | Coil Resistance | Features | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2942807 | -20 C | 40 °C | Non Latching | DIN Rail | 140 W, 1500 VA | Silver Nickel (AgNi) | 11 ms | 250 VAC, 250 VDC | 21 mA | 24 VDC | 7 ms | cULus, EAC, UL | SPST-NO (1 Form A) | General Purpose | Screw Terminal | 1.14 kOhms | Diode, Lighted Indicator, Socket Included | 6 A |
