9212711B0035
ActiveEase Electronics
CBL COAX BLK PE JACKET 1=1'
9212711B0035
ActiveEase Electronics
CBL COAX BLK PE JACKET 1=1'
Description
General part information
9212711B0035

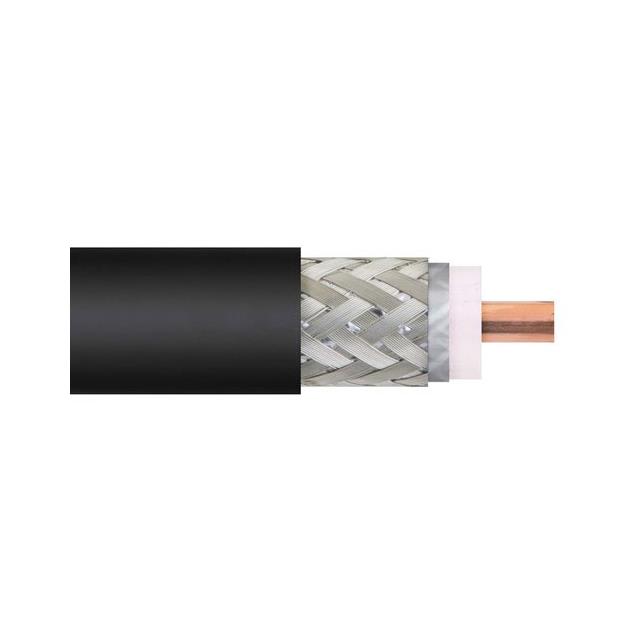

Coaxial Cable LMR-400 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | 9212711B0035 |
|---|---|
| Cable Group | LMR-400 |
| Cable Type | Coaxial |
| Conductor Material | Copper Coated, Aluminum |
| Conductor Strand | Solid |
| Dielectric Diameter | 0.285 in |
| Dielectric Material | Polyethylene (PE) |
| Impedance | 50 Ohm |
| Jacket (Insulation) Diameter | 0.405 in |
| Jacket (Insulation) Material | Polyethylene (PE) |
| Jacket Color | Black |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Material | Aluminum, Tinned, Copper |
| Shield Type | Braid |
| Velocity of Propagation (VoP) | 85 % |
