8262 0101000

Active

Belden Inc.

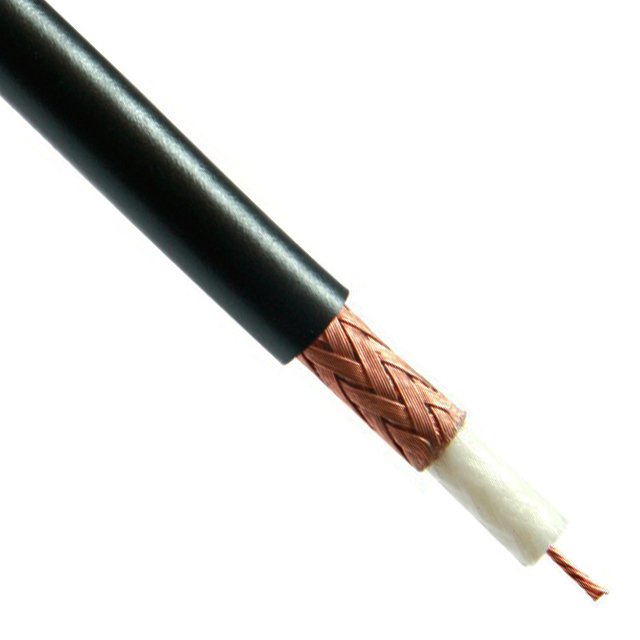

CABLE COAX RG-58A/U 20 AWG 1000'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE COAX RG-58A/U 20 AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	8262 0101000

Cable Type	Coaxial
Conductor Material	Copper, Tinned
Conductor Strand	33 AWG
Conductor Strand [custom]	19 Strands
Dielectric Diameter [diameter]	0.115 in
Dielectric Diameter [diameter]	2.92 mm
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.195 in
Jacket (Insulation) Diameter [diameter]	4.95 mm
Jacket (Insulation) Material	Non Contaminating Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Braid
Wire Gauge	20 AWG

Part	Shield Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Shield Coverage	Shield Material	Conductor Strand [custom]	Conductor Strand	Length	Length	Wire Gauge	Cable Type	Jacket Color	Cable Group	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Impedance
Belden Inc. 8262 010U1000	Braid	0.115 in	2.92 mm	85 °C	-40 °C	Copper Tinned	95 %	Copper Bare	19 Strands	33 AWG	304.8 m	1000 ft	20 AWG	Coaxial	Black	RG-58	0.195 in	4.95 mm	Poly-Vinyl Chloride (PVC)
Belden Inc. 8262 0101000	Braid	0.115 in	2.92 mm	85 °C	-40 °C	Copper Tinned	95 %	Copper Tinned	19 Strands	33 AWG	304.8 m	1000 ft	20 AWG	Coaxial	Black		0.195 in	4.95 mm	Non Contaminating Poly-Vinyl Chloride (PVC)	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Cable 20 AWG 1000.0' (304.80m) 50 Ohms
