1013795

Active

Phoenix Contact

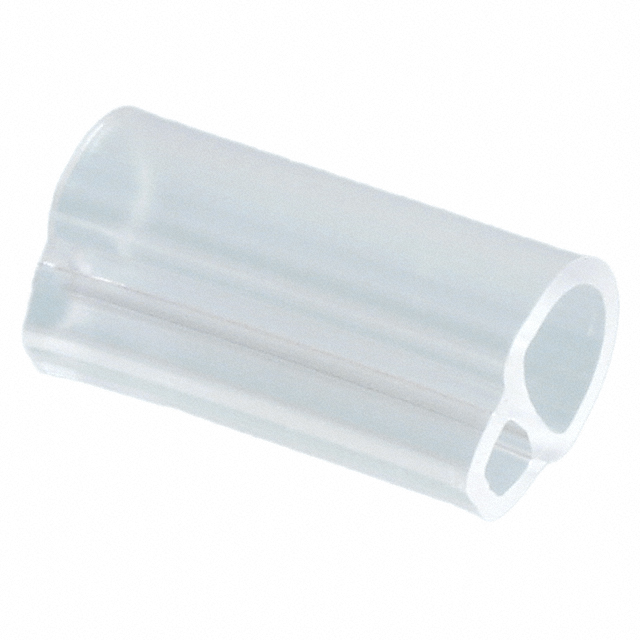

WIRE MARKER SLIP-ON 10MM X 4MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPATG,PATO,PAB-KTL Datasheet

1013795

Active

Phoenix Contact

WIRE MARKER SLIP-ON 10MM X 4MM

Deep-Dive with AI

DocumentsPATG,PATO,PAB-KTL Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1013795	PATG Series

Cable Diameter	-	1.5 - 35 mm
Cable Diameter	-	0.059 - 1.969 in
Cable Diameter	-	50 mm
Cable Diameter [Max] [diameter]	1.2 mm	1.2 - 35 mm
Cable Diameter [Max] [diameter]	0.047 in	0.047 - 1.378 in
Cable Diameter [Min] [diameter]	0.024 in	0.024 - 1.181 in
Cable Diameter [Min] [diameter]	0.6 mm	0.6 - 30 mm
Color	Transparent	Transparent
Legend	Blank	Blank
Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-50 °C	-50 °C
Size [x]	10 mm	4 - 23 mm
Size [x]	0.16 "	0.16 - 0.91 in
Size [y]	0.39 "	0.16 - 1.18 in
Size [y]	4 mm	4 - 30 mm
Type	-	Wire Marker, Slip-On

PATG Series

WIRE MARKER SLIP-ON 18X4MM TRANS

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size [y]	Size [x]	Size [y]	Size [x]	Material	Color	Legend	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Cable Diameter [diameter]	Cable Diameter [diameter]	Type
Phoenix Contact 0820523	-50 °C	80 C	4 mm	0.71 in	0.16 in	18 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank	2 mm	4 mm	0.079 in	0.157 in
Phoenix Contact 1013096	-50 °C	80 C	15 mm	0.16 "	0.59 in	4 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank	30 mm	35 mm	1.181 in	1.378 in
Phoenix Contact 0827078	-50 °C	80 C	12 mm	0.16 "	0.47 "	4 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank	2 mm	4 mm	0.079 in	0.157 in
Phoenix Contact 0822453	-50 °C	80 C	30 mm	0.16 "	1.18 in	4 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank	2 mm	4 mm	0.079 in	0.157 in
Phoenix Contact 1013818	-50 °C	80 C	4 mm	0.16 "	0.39 "	10 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank	2 mm	4 mm	0.079 in	0.157 in
Phoenix Contact 1013067	-50 °C	80 C	15 mm	0.16 "	0.59 in	4 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank					10 mm, 14 mm	0.394 in, 0.551 in
Phoenix Contact 0828062	-50 °C	80 C					Poly-Vinyl Chloride (PVC)	Transparent	Blank					14 mm, 22 mm	0.551 in, 0.866 in	Wire Marker, Slip-On
Phoenix Contact 0827076	-50 °C	80 C	12 mm	0.16 "	0.47 "	4 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank	0.6 mm	1.2 mm	0.024 in	0.047 in
Phoenix Contact 0820510	-50 °C	80 C	4 mm	0.71 in	0.16 in	18 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank					1.5 mm, 2.5 mm	0.059 in, 0.098 in
Phoenix Contact 0822466	-50 °C	80 C	30 mm	0.16 "	1.18 in	4 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank	4 mm	7 mm	0.157 in	0.276 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.18

Description

General part information

PATG Series

Wire Marker Carrier, Slip-On 0.39" W x 0.16" L (10.0mm x 4.0mm) Transparent Poly-Vinyl Chloride (PVC)

Documents

Technical documentation and resources

PATG,PATO,PAB-KTL

Datasheet
