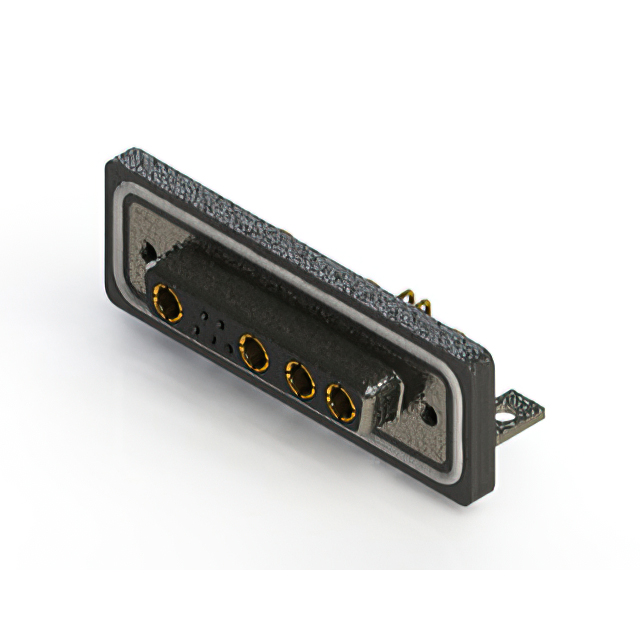

630W9W4-640-4N4

Active

EDAC Inc.

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630W9W4-640-4N4

Active

EDAC Inc.

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630W9W4-640-4N4

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Positions [custom]	4
Number of Positions [custom]	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B) - 9W4
Termination	Solder
Voltage Rating	125 VDC

630W9W Series

Part	Connector Style	Contact Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Voltage Rating	Shell Material, Finish	Contact Finish	Connector Type	Material Flammability Rating	Ingress Protection	Dielectric Material	Mounting Type	Features	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shell Size, Connector Layout	Contact Material	Color	Flange Feature	Current Rating (Amps)
EDAC Inc. 630W9W4-640-4N4	Combo D-Sub	Signal and Power	4	5	9	125 VDC	Nickel Plated Steel	Gold	Receptacle Female Sockets	UL94 V-0	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Right Angle Through Hole	Mounting Brackets Shielded	2	0.76 Ám	30 Áin	Solder	-55 °C	125 °C	5 A 40 A	3 (DB B) - 9W4	Copper Alloy	Black	Housing/Shell (4-40)
EDAC Inc. 630W9W4-640-4N3	Combo D-Sub	Signal and Power	4	5	9	125 VDC	Nickel Plated Steel	Gold	Receptacle Female Sockets	UL94 V-0	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Right Angle Through Hole	Board Lock Mounting Brackets Shielded	2	0.76 Ám	30 Áin	Solder	-55 °C	125 °C	5 A 40 A	3 (DB B) - 9W4	Copper Alloy	Black	Housing/Shell (4-40)
EDAC Inc. 630W9W4-640-4NC	Combo D-Sub	Signal and Power	4	5	9	125 VDC	Nickel Plated Steel	Gold	Receptacle Female Sockets	UL94 V-0	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole Right Angle	Mounting Brackets Shielded	2	0.76 Ám	30 Áin	Solder	-55 °C	125 °C	5 A 40 A	3 (DB B) - 9W4	Copper Alloy	Black	Housing/Shell (M3)
EDAC Inc. 630W9W4-640-2N4	Combo D-Sub	Signal and Power	4	5	9	125 VDC	Nickel Plated Steel	Gold	Receptacle Female Sockets	UL94 V-0	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Right Angle Through Hole	Mounting Brackets Shielded	2	0.76 Ám	30 Áin	Solder	-55 °C	125 °C	5 A 20 A	3 (DB B) - 9W4	Copper Alloy	Black	Housing/Shell (4-40)
EDAC Inc. 630W9W4-640-1NB	Combo D-Sub	Signal and Power	4	5	9	125 VDC	Nickel Plated Steel	Gold	Receptacle Female Sockets	UL94 V-0	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Right Angle Through Hole	Board Lock Mounting Brackets Shielded	2	0.76 Ám	30 Áin	Solder	-55 °C	125 °C		3 (DB B) - 9W4	Copper Alloy	Black	Housing/Shell (M3)	10A 5A
EDAC Inc. 630W9W4-640-4N2	Combo D-Sub	Signal and Power	4	5	9	125 VDC	Nickel Plated Steel	Gold	Receptacle Female Sockets	UL94 V-0	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Right Angle Through Hole	Shielded	2	0.76 Ám	30 Áin	Solder	-55 °C	125 °C	5 A 40 A	3 (DB B) - 9W4	Copper Alloy	Black	Housing/Shell (4-40)
EDAC Inc. 630W9W4-640-1N4	Combo D-Sub	Signal and Power	4	5	9	125 VDC	Nickel Plated Steel	Gold	Receptacle Female Sockets	UL94 V-0	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Right Angle Through Hole	Mounting Brackets Shielded	2	0.76 Ám	30 Áin	Solder	-55 °C	125 °C		3 (DB B) - 9W4	Copper Alloy	Black	Housing/Shell (4-40)	10A 5A
EDAC Inc. 630W9W4-640-1NA	Combo D-Sub	Signal and Power	4	5	9	125 VDC	Nickel Plated Steel	Gold	Receptacle Female Sockets	UL94 V-0	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Right Angle Through Hole	Shielded	2	0.76 Ám	30 Áin	Solder	-55 °C	125 °C		3 (DB B) - 9W4	Copper Alloy	Black	Housing/Shell (M3)	10A 5A
EDAC Inc. 630W9W4-640-1N2	Combo D-Sub	Signal and Power	4	5	9	125 VDC	Nickel Plated Steel	Gold	Receptacle Female Sockets	UL94 V-0	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Right Angle Through Hole	Shielded	2	0.76 Ám	30 Áin	Solder	-55 °C	125 °C		3 (DB B) - 9W4	Copper Alloy	Black	Housing/Shell (4-40)	10A 5A
EDAC Inc. 630W9W4-340-3NB	Combo D-Sub	Signal and Power	4	5	9	125 VDC	Nickel Plated Steel	Gold	Receptacle Female Sockets	UL94 V-0	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Right Angle Through Hole	Board Lock Mounting Brackets Shielded	2	0.38 µm	15 µin	Solder	-55 °C	125 °C	5 A 30 A	3 (DB B) - 9W4	Copper Alloy	Black	Housing/Shell (M3)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 30.40

Description

General part information

630W9W Series

9 (5 + 4 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
