796435-1
ObsoleteTE Connectivity AMP Connectors

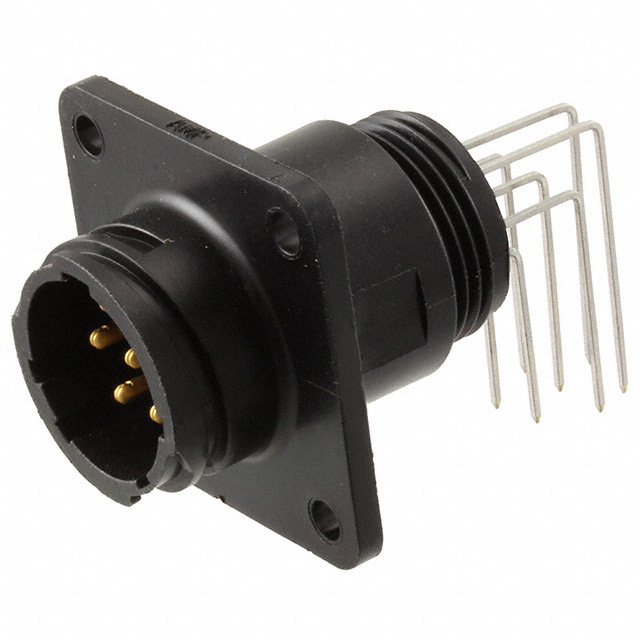

CONN RCPT MALE 7POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796435-1
ObsoleteTE Connectivity AMP Connectors
CONN RCPT MALE 7POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 796435-1 | 796435 Series |
|---|---|---|
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold, PdNi +Gold |
| Contact Finish Thickness - Mating | 30 Áin | 3 - 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.076 - 0.76 Ám |
| Contact Material | Brass | Brass |
| Material Flammability Rating | UL94 V-0 | UL94 V-0, UL94 V-1 |
| Mounting Feature | Flange | Flange |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 7 | 7 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | A | A |
| Primary Material | Plastic | Plastic |
| Shell Size - Insert | 13-7 | 13-7 |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
796435 Series
CONN RCPT MALE 7POS GOLD SOLDER
| Part | Contact Finish - Mating | Connector Type | Termination | Orientation | Material Flammability Rating | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Shell Size - Insert | Primary Material | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796435-1 | Gold | Male Pins, Receptacle | Solder | A | UL94 V-0 | 7 | 30 Áin | 0.76 Ám | Flange | 105 ░C | -55 °C | 250 VAC | 13-7 | Plastic | Panel Mount, Right Angle, Through Hole | Brass |
TE Connectivity AMP Connectors 1-796435-2 | Gold, PdNi +Gold | Male Pins, Receptacle | Solder | A | UL94 V-0 | 7 | 30 Áin | 0.76 Ám | Flange | 105 ░C | -55 °C | 250 VAC | 13-7 | Plastic | Panel Mount, Right Angle, Through Hole | Brass |
TE Connectivity AMP Connectors 796435-2 | Gold | Male Pins, Receptacle | Solder | A | UL94 V-1 | 7 | 3 µin | 0.076 µm | Flange | 105 ░C | -55 °C | 250 VAC | 13-7 | Plastic | Panel Mount, Right Angle, Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 18.67 | |
Description
General part information
796435 Series
7 Position Circular Connector Receptacle, Male Pins Solder
