SSB1-72F16-3090-00

Active

New Energy

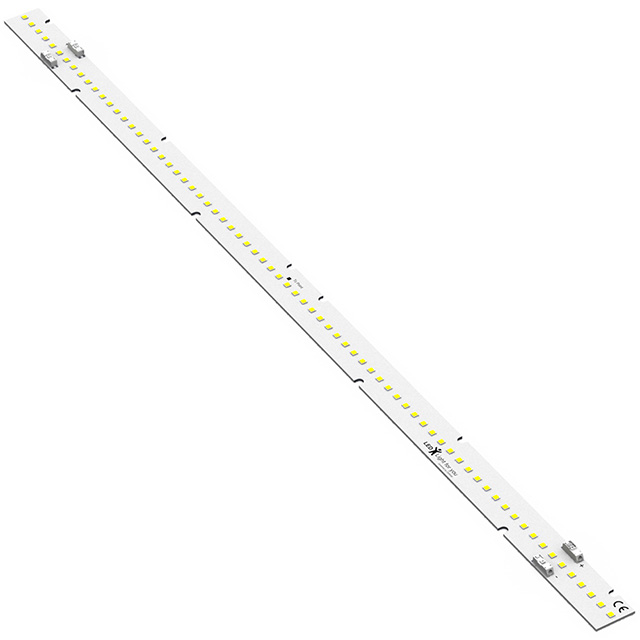

LED MOD SSB1 WHT LNR STRP 3000K

Search across all available documentation for this part.

Active

New Energy

LED MOD SSB1 WHT LNR STRP 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	SSB1-72F16-3090-00

Color	White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	90
Current - Max [Max]	1.08 A
Current - Test	390 mA
Height [z]	6 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	176 lm/W
Luminous Flux @ Current/Temperature	2268 lm
Size / Dimension [x]	559.5 mm
Size / Dimension [y]	22 mm
Temperature - Test	65 °C
Type	LED Module
Voltage - Forward (Vf) (Typ)	33 V

LED MOD SSB1 WHT LNR STRP 3000K

Part	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Lens Type	Temperature - Test	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]	Configuration	Color	Current - Max [Max]	Current - Test	Voltage - Forward (Vf) (Typ)	Height [z]	Type
New Energy SSB1-72F16-3090-00	176 lm/W	2268 lm	Flat	65 °C	90	22 mm	559.5 mm	Linear Light Strip	Warm, White	1.08 A	390 mA	33 V	6 mm	LED Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.88

General part information

LED Lighting COBs Engines Modules LED Module SSB1 White, Warm Linear Light Strip
