PCA.0E.304.CLLC40

Active

LEMO

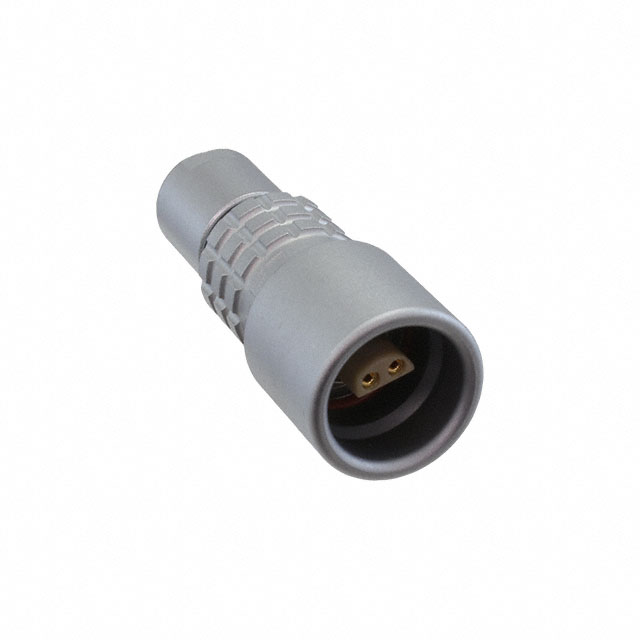

CONN CIRC RCPT 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PCA.0E.304.CLLC40

Active

LEMO

CONN CIRC RCPT 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.98
		10	$ 34.13
		25	$ 32.66
		50	$ 31.60
		100	$ 30.55
		250	$ 28.86

Description

General part information

PCA.0E Series

4 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PCA.0E.304.CLLC40	PCA.0E Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	174A, 188A, 196A, 316B, 178B, RG-122, 174, 178, RG-174
Cable Opening	-	0.059 - 0.197 in
Cable Opening	-	1.3 - 4.6 mm
Cable Opening	-	0.051 - 0.181 in
Cable Opening	-	4.5 - 5 mm
Cable Opening	-	3.5 mm
Cable Opening	-	0.098 - 0.138 in
Cable Opening	-	0.083 - 0.122 in
Cable Opening	-	2.1 - 3.1 mm
Cable Opening	-	2.5 - 3 mm
Cable Opening	-	1.5 mm
Cable Opening [custom]	0.142 in, 0.157 in	0.142 - 0.157 in
Cable Opening [custom]	4 mm	4 mm
Cable Opening [custom]	3.6 mm	3.6 mm
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Coaxial, Triaxial
Connector Type	Female Sockets, Male Pins, Receptacle	Female Sockets, Male Pins, Receptacle, Female Socket, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Contact Termination	-	Solder
Current Rating (Amps)	7 A	7 - 12 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Housing Color	-	Silver
Impedance	-	50 Ohms
Ingress Protection	IP66/IP68	IP66/IP68, IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	5000
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	-	1
Number of Positions	4	1 - 4
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	304	116 - 304
Shield Termination	-	Clamp
Shielding	Shielded	Shielded

PCA.0E Series

CONN CIRC RCPT 4P GOLD SLDR CUP

Part	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Color	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Shell Finish	Contact Finish - Mating	Contact Material	Current Rating (Amps)	Shell Material	Insert Material	Orientation	Features	Fastening Type	Material Flammability Rating	Backshell Material, Plating	Mounting Type	Primary Material	Shell Size - Insert	Connector Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Shield Termination	Body Material	Impedance	Mating Cycles	Dielectric Material	Center Contact Material	Number of Ports	Contact Termination	Housing Color	Cable Group	Center Contact Plating	Body Finish	Connector Style
LEMO PCA.0E.304.CLLC40Z	Shielded	-55 °C	200 °C	4	Silver	IP66/IP68	0.142 in, 0.157 in	4 mm	3.6 mm	Chrome	Gold	Brass, Bronze	7 A	Brass	Polyetheretherketone (PEEK)	Keyed	Backshell	Push-Pull	UL94 V-0	Brass, Chrome	Free Hanging (In-Line)	Metal	304	Female Sockets, Male Pins, Receptacle
LEMO PCA.0E.302.CLLC45	Shielded	-55 °C	200 °C	2	Silver	IP66/IP68				Chrome	Gold	Brass, Bronze	10 A	Brass	Polyetheretherketone (PEEK)	Keyed	Backshell	Push-Pull	UL94 V-0	Brass, Chrome	Free Hanging (In-Line)	Metal	302	Female Sockets, Male Pins, Receptacle	0.177 in	4.1 mm	0.161 in	4.5 mm
LEMO PCA.0E.303.CLLC35	Shielded	-55 °C	200 °C		Silver	IP66/IP68				Chrome	Gold	Brass, Bronze	7 A	Brass	Polyetheretherketone (PEEK)	Keyed	Backshell	Push-Pull	UL94 V-0	Brass, Chrome	Free Hanging (In-Line)	Metal	303	Female Sockets, Male Pins, Receptacle					3.5 mm	0.138 in	0.122 in	3.1 mm
LEMO PCA.0E.304.CLLC30	Shielded	-55 °C	200 °C	4	Silver	IP66/IP68				Chrome	Gold	Brass, Bronze	7 A	Brass	Polyetheretherketone (PEEK)	Keyed	Backshell	Push-Pull	UL94 V-0	Brass, Chrome	Free Hanging (In-Line)	Metal	304	Female Sockets, Male Pins, Receptacle						0.118 in	0.102 in	2.6 mm	3 mm
LEMO PCA.0E.304.CLLC40	Shielded	-55 °C	200 °C	4	Silver	IP66/IP68	0.142 in, 0.157 in	4 mm	3.6 mm	Chrome	Gold	Brass, Bronze	7 A	Brass	Polyetheretherketone (PEEK)	Keyed	Backshell	Push-Pull	UL94 V-0	Brass, Chrome	Free Hanging (In-Line)	Metal	304	Female Sockets, Male Pins, Receptacle
LEMO PCA.0E.303.CLLC40	Shielded	-55 °C	200 °C		Silver	IP66/IP68	0.142 in, 0.157 in	4 mm	3.6 mm	Chrome	Gold	Brass, Bronze	7 A	Brass	Polyetheretherketone (PEEK)	Keyed	Backshell	Push-Pull	UL94 V-0	Brass, Chrome	Free Hanging (In-Line)	Metal	303	Female Sockets, Male Pins, Receptacle
LEMO PCA.0E.304.CLLC25	Shielded	-55 °C	200 °C	4	Silver	IP66/IP68				Chrome	Gold	Brass, Bronze	7 A	Brass	Polyetheretherketone (PEEK)	Keyed	Backshell	Push-Pull	UL94 V-0	Brass, Chrome	Free Hanging (In-Line)	Metal	304	Female Sockets, Male Pins, Receptacle						0.098 in	0.083 in	2.1 mm	2.5 mm
LEMO PCA.0E.250.CTLC35		-55 °C	200 °C			IP68 - Dust Tight, Waterproof												Push-Pull			Free Hanging (In-Line)			Female Socket, Receptacle										Clamp	Brass	50 Ohms	5000	Polytetrafluoroethylene (PTFE)	Beryllium Copper	1	Solder	Silver	174, 174A, 178B, 188A, 196A, 316B, RG-122	Gold	Chrome	Coaxial
LEMO PCA.0E.304.CLLC45Z	Shielded	-55 °C	200 °C	4	Silver	IP66/IP68				Chrome	Gold	Brass, Bronze	7 A	Brass	Polyetheretherketone (PEEK)	Keyed	Backshell	Push-Pull	UL94 V-0	Brass, Chrome	Free Hanging (In-Line)	Metal	304	Female Sockets, Male Pins, Receptacle	0.177 in	4.1 mm	0.161 in	4.5 mm
LEMO PCA.0E.304.CLLC35Z	Shielded	-55 °C	200 °C	4	Silver	IP66/IP68				Chrome	Gold	Brass, Bronze	7 A	Brass	Polyetheretherketone (PEEK)	Keyed	Backshell	Push-Pull	UL94 V-0	Brass, Chrome	Free Hanging (In-Line)	Metal	304	Female Sockets, Male Pins, Receptacle					3.5 mm	0.138 in	0.122 in	3.1 mm
