STSPIN32F0602

Active

STMicroelectronics

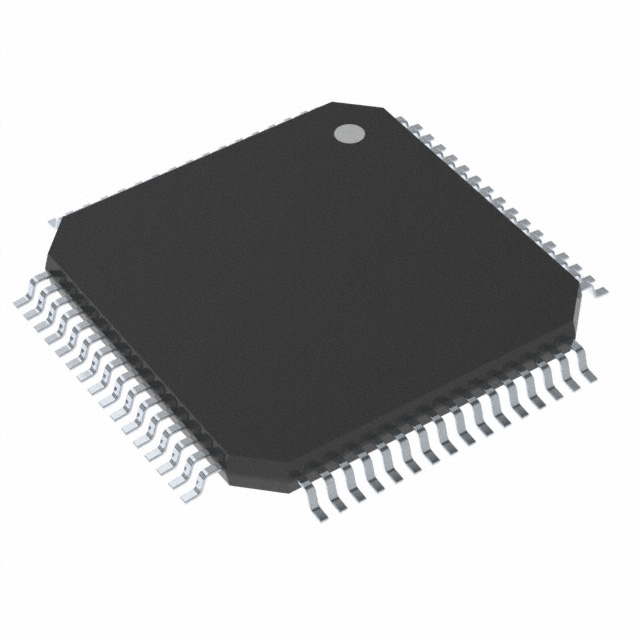

H-BRIDGE MOTOR DRIVER 3.3V 64-PIN TQFP EP TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

STSPIN32F0602

Active

STMicroelectronics

H-BRIDGE MOTOR DRIVER 3.3V 64-PIN TQFP EP TRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STSPIN32F0602

Applications	Home & Industrial
Controller Series	STM32F031x6x7
Core Processor	ARM® Cortex®-M0
Interface	I2C, UART/USART, SPI
Mounting Type	Surface Mount
Number of I/O	21 I/O
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	64-TQFP Exposed Pad
RAM Size	4K x 8
Supplier Device Package	64-TQFP (10x10)
Voltage - Supply [Max]	20 V
Voltage - Supply [Min]	9 V

STSPIN32F0602 Series

600V three-phase controller with MCU

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Core Processor	RAM Size	Controller Series	Mounting Type	Applications	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Number of I/O	Interface
STMicroelectronics STSPIN32F0602	9 V	20 V	64-TQFP (10x10)	ARM® Cortex®-M0	4K x 8	STM32F031x6x7	Surface Mount	Home & Industrial	64-TQFP Exposed Pad	-40 °C	125 ¯C	21 I/O	I2C, SPI, UART/USART

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 2.46
		10	$ 2.45
		50	$ 2.43
		500	$ 2.43
Digikey	Tray	1	$ 3.25
		10	$ 2.92
		25	$ 2.76
		160	$ 2.39
		320	$ 2.27
		480	$ 2.16

Description

General part information

STSPIN32F0602 Series

The STSPIN32F060x system-in-package is an extremely integrated solution for driving three-phase applications, helping designers to reduce PCB area and overall bill-of-material.

It embeds an STM32F031x6x7 featuring an ARM® 32-bit Cortex®-M0 CPU and a 600 V triple half-bridge gate driver, able to drive N-channel power MOSFETs or IGBTs.

A comparator featuring advanced smartSD function is integrated, ensuring fast and effective protection against overload and overcurrent.
