MM3563B13RRE

Active

Mitsumi Electric Company Ltd

IC, MULTI CELL, SECOND PROTECTIO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MM3563B13RRE

Active

Mitsumi Electric Company Ltd

IC, MULTI CELL, SECOND PROTECTIO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MM3563B13RRE	MM3563 Series

Battery Chemistry	Lithium Ion/Polymer	Lithium Ion/Polymer
Function	Battery Protection	Battery Protection
Mounting Type	Surface Mount	Surface Mount
Number of Cells [Max]	3 cells	3 cells
Number of Cells [Min]	1	1
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C

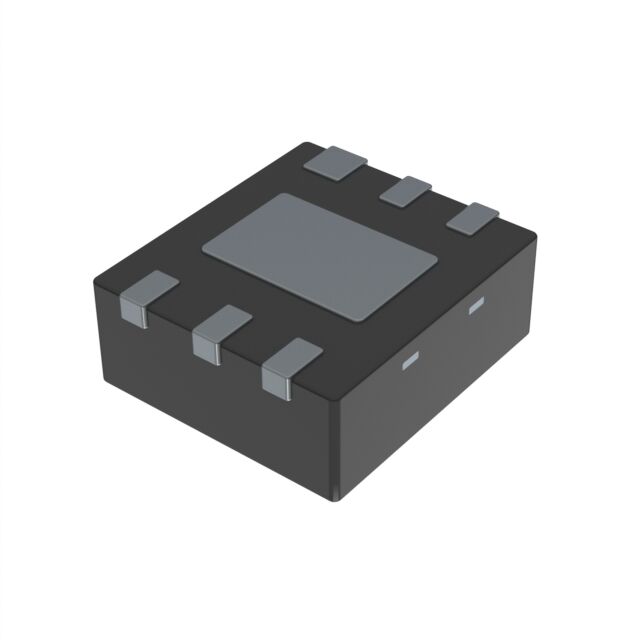

Package / Case	6-WFDFN Exposed Pad	6-WFDFN Exposed Pad, SOT-23-6
Supplier Device Package	SSON-6A	SSON-6A, SOT-26A

MM3563 Series

IC, MULTI CELL, SECOND PROTECTIO

Part	Function	Number of Cells [Min]	Number of Cells [Max]	Mounting Type	Supplier Device Package	Package / Case	Battery Chemistry	Operating Temperature [Min]	Operating Temperature [Max]
Mitsumi Electric Company Ltd MM3563B11RRE	Battery Protection	1	3 cells	Surface Mount	SSON-6A	6-WFDFN Exposed Pad	Lithium Ion/Polymer	-40 °C	110 °C
Mitsumi Electric Company Ltd MM3563B04RRE	Battery Protection	1	3 cells	Surface Mount	SSON-6A	6-WFDFN Exposed Pad	Lithium Ion/Polymer	-40 °C	110 °C
Mitsumi Electric Company Ltd MM3563B04NRH	Battery Protection	1	3 cells	Surface Mount	SOT-26A	SOT-23-6	Lithium Ion/Polymer	-40 °C	110 °C
Mitsumi Electric Company Ltd MM3563B02NRH	Battery Protection	1	3 cells	Surface Mount	SOT-26A	SOT-23-6	Lithium Ion/Polymer	-40 °C	110 °C
Mitsumi Electric Company Ltd MM3563B03NRH	Battery Protection	1	3 cells	Surface Mount	SOT-26A	SOT-23-6	Lithium Ion/Polymer	-40 °C	110 °C
Mitsumi Electric Company Ltd MM3563B13RRE	Battery Protection	1	3 cells	Surface Mount	SSON-6A	6-WFDFN Exposed Pad	Lithium Ion/Polymer	-40 °C	110 °C
Mitsumi Electric Company Ltd MM3563B06RRE	Battery Protection	1	3 cells	Surface Mount	SSON-6A	6-WFDFN Exposed Pad	Lithium Ion/Polymer	-40 °C	110 °C
Mitsumi Electric Company Ltd MM3563B03RRE	Battery Protection	1	3 cells	Surface Mount	SSON-6A	6-WFDFN Exposed Pad	Lithium Ion/Polymer	-40 °C	110 °C
Mitsumi Electric Company Ltd MM3563B09RRE	Battery Protection	1	3 cells	Surface Mount	SSON-6A	6-WFDFN Exposed Pad	Lithium Ion/Polymer	-40 °C	110 °C
Mitsumi Electric Company Ltd MM3563B15RRE	Battery Protection	1	3 cells	Surface Mount	SSON-6A	6-WFDFN Exposed Pad	Lithium Ion/Polymer	-40 °C	110 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.85
		10	$ 1.36
		25	$ 1.24
		100	$ 1.11
		250	$ 1.04
		500	$ 1.00
		1000	$ 0.97
	Digi-Reel®	1	$ 1.85
		10	$ 1.36
		25	$ 1.24
		100	$ 1.11
		250	$ 1.04
		500	$ 1.00
		1000	$ 0.97
	Tape & Reel (TR)	3000	$ 0.84

Description

General part information

MM3563 Series

Battery Battery Protection IC Lithium Ion/Polymer SSON-6A
