Description
General part information

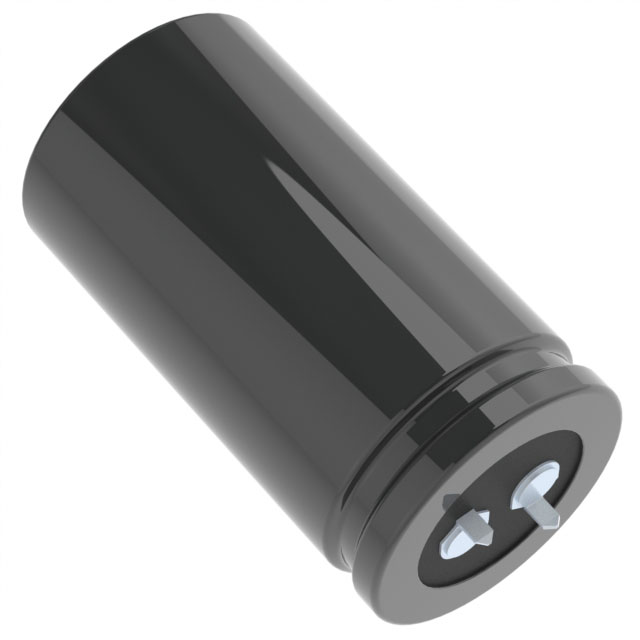

EKMH251VNN182MA63T
1800 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 138mOhm @ 120Hz 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | EKMH251VNN182MA63T |
|---|---|
| Applications | General Purpose |
| Capacitance | 1800 µF |
| ESR (Equivalent Series Resistance) | 138 mOhm |
| Height - Seated (Max) | 2.559 in |
| Lead Spacing | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 3.27 A, 4.905 A |
| Size / Dimension Diameter | 1.378 in |
| Tolerance | 20 % |
| Voltage - Rated | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
