Description
General part information

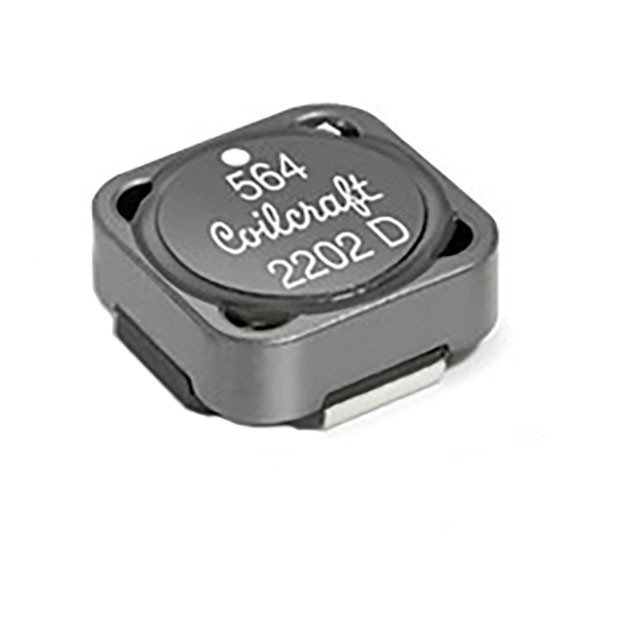

MSS1246H-153MED
15 µH Shielded Drum Core Inductor 2.38 A 46mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | MSS1246H-153MED |
|---|---|
| Current - Saturation (Isat) | 4.8 A |
| Current Rating | 2.38 A |
| DC Resistance (DCR) (Max) | 46 mOhm |
| Frequency - Self Resonant | 22 MHz |
| Height - Seated (Max) | 0.191 in |
| Inductance | 15 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.472 in |
| Size / Dimension Width | 0.472 in |
| Tolerance | 20 % |
| Type | Drum Core |
