SD3118-221-R
ActiveEaton - Electronics Division
FIXED IND 220UH 182MA 4.77OHM SM
SD3118-221-R
ActiveEaton - Electronics Division
FIXED IND 220UH 182MA 4.77OHM SM
Description
General part information
SD3118-221-R

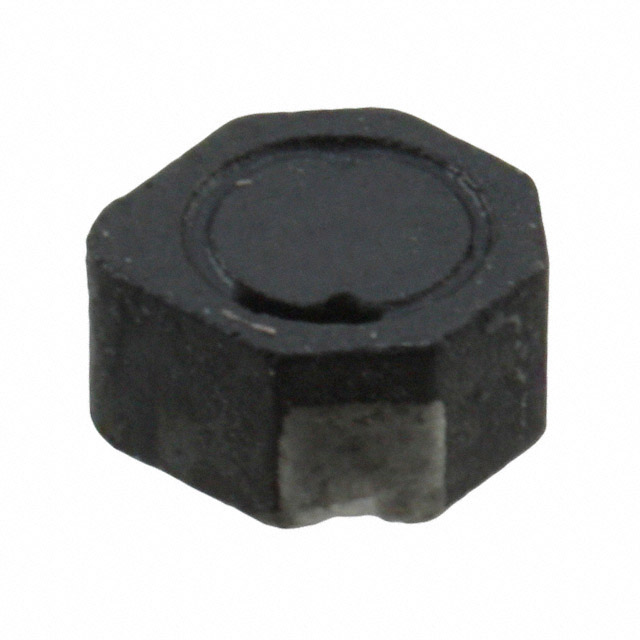

220 µH Shielded Drum Core, Wirewound Inductor 182 mA 4.77Ohm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SD3118-221-R |
|---|---|
| Current - Saturation (Isat) | 0.166 mA |
| Current Rating | 182 mA |
| DC Resistance (DCR) | 4.77 Ohm |
| Height - Seated (Max) | 0.071 in |
| Inductance | 220 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.122 in |
| Size / Dimension Width | 0.122 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
