Description
General part information

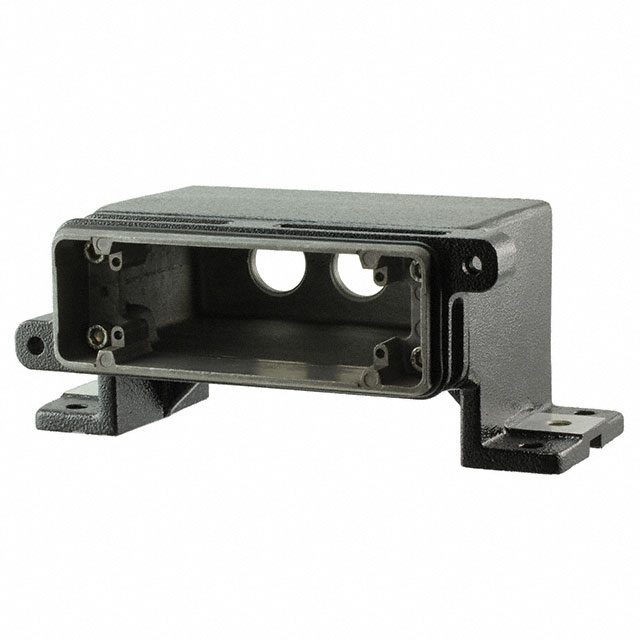

19400240 Series
Base - Panel Mount 90° Connector Side Entry, Triple M25 24B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Technical Specifications
Parameters and characteristics for this part
| Specification | 19400240931 |
|---|---|
| Connector Angle | 90 |
| Connector Type | Base - Panel Mount, Base - Panel Mount 90° |
| Housing Color | Black |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP68, IP69K, IP65 |
| Lock Location | Screw Locks on Hood |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | 24B |
| Size / Dimension Height | 3.465 in |
| Size / Dimension Length | 8.504 in |
| Size / Dimension Width | 4.685 in |
| Style | Triple, Side Entry |
| Thread Size | M25 |
