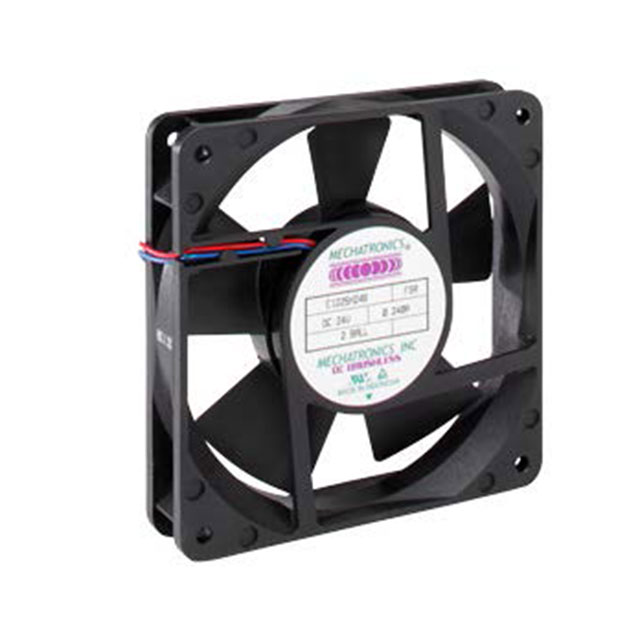

E1225E48B-FSR

Active

Mechatronics Fan Group

FAN AXIAL 120X25MM 48VDC WIRE

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN AXIAL 120X25MM 48VDC WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	E1225E48B-FSR	E1225E48B Series

Air Flow	93 CFM	93 CFM
Air Flow	2.6 m³/min	2.6 m³/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.17 A	0.17 A
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP)	Thermal Overload Protector (TOP), Alarm Sensor, Speed Sensor (Tach)
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	44 dB	44 dB
RPM	3000 RPM	3000 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	69.7 Pa	69.7 Pa
Static Pressure	0.28 in H2O	0.28 in H2O
Termination	2 Wire Leads	2 Wire Leads, 4 Wire Leads
Voltage - Rated [custom]	48 VDC	48 VDC
Weight	196.86 g	196.86 g
Weight	0.434 lb	0.434 lb
Width [y]	25 mm	25 mm

FAN AXIAL 120X25MM 48VDC WIRE

Part	Noise	Features	Width [y]	Material - Blade	Approval Agency	RPM	Voltage - Rated [custom]	Size / Dimension [y]	Size / Dimension [x]	Air Flow	Air Flow	Static Pressure	Static Pressure	Bearing Type	Fan Type	Current Rating (Amps)	Weight	Weight	Termination
Mechatronics Fan Group E1225E48B-FSR	44 dB	Thermal Overload Protector (TOP)	25 mm	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	3000 RPM	48 VDC	120 mm	120 mm	93 CFM	2.6 m³/min	69.7 Pa	0.28 in H2O	Ball	Tubeaxial	0.17 A	196.86 g	0.434 lb	2 Wire Leads
Mechatronics Fan Group E1225E48B1-FSR-WS	44 dB	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	25 mm	Polybutylene Terephthalate (PBT)	CE, cUL, TUV, UL	3000 RPM	48 VDC	120 mm	120 mm	93 CFM	2.6 m³/min	69.7 Pa	0.28 in H2O	Ball	Tubeaxial	0.17 A	196.86 g	0.434 lb	4 Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 13.79

General part information

Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 93.0 CFM (2.60m³/min) 2 Wire Leads
