01312.15T.01

Active

Prysmian Group

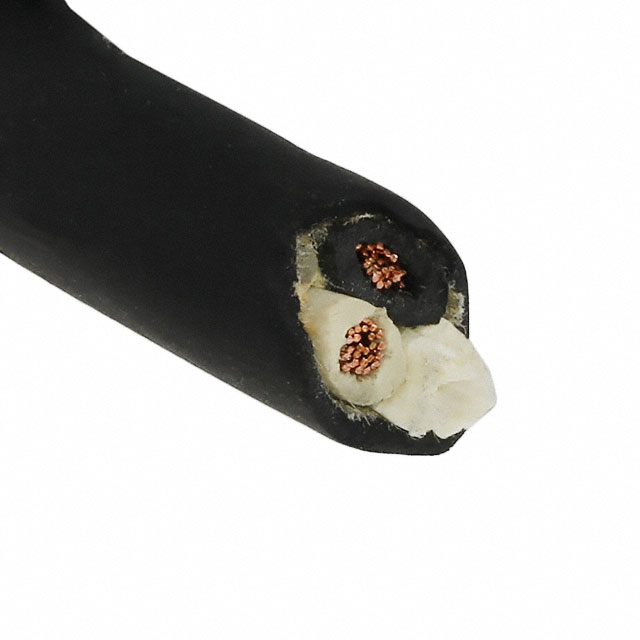

CABLE 2COND 16AWG BLACK 250'

Deep-Dive with AI

Search across all available documentation for this part.

01312.15T.01

Active

Prysmian Group

CABLE 2COND 16AWG BLACK 250'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	01312.15T.01	01312 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare	Copper, Bare, Copper, Annealed Bare
Conductor Strand [custom]	30 AWG	30 AWG
Conductor Strand [custom]	26	26
Jacket (Insulation) Material	Carolprene	Carolprene
Jacket (Insulation) Thickness	0.762 mm	0.762 mm
Jacket (Insulation) Thickness	0.03 in	0.03 in
Jacket Color	Black	Black
Length	3000 "	1000 - 3000 ft
Length	76.2 m	76.2 - 304.8 m
Length	-	45.7 - 152.4 m
Length	-	500 - 1800 in
Number of Conductors	2	2
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Usage	Cord and Cordset	Cord and Cordset
Voltage	300 V	300 V
Wire Gauge	16 AWG	16 AWG

01312 Series

CABLE 2COND 16AWG BLACK

Part	Voltage	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Cable Type	Conductor Material	Usage	Jacket Color	Length [x]	Length [x]	Length	Length
Prysmian Group 01312.46.01	300 V	16 AWG	30 AWG	26	2	90 °C	-40 °C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.762 mm	0.03 in	Carolprene	Multi-Conductor	Copper, Bare	Cord and Cordset	Black
Prysmian Group 01312.H5.01	300 V	16 AWG	30 AWG	26	2	90 °C	-40 °C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.762 mm	0.03 in	Carolprene	Multi-Conductor	Copper, Bare	Cord and Cordset	Black	45.7 m	1800 in
Prysmian Group 01312.41.01	300 V	16 AWG	30 AWG	26	2	90 °C	-40 °C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.762 mm	0.03 in	Carolprene	Multi-Conductor	Copper, Bare	Cord and Cordset	Black			1000 ft	304.8 m
Prysmian Group 01312.41T.01	300 V	16 AWG	30 AWG	26	2	90 °C	-40 °C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.762 mm	0.03 in	Carolprene	Multi-Conductor	Copper, Bare	Cord and Cordset	Black			1000 ft	304.8 m
Prysmian Group 01312.15.01	300 V	16 AWG	30 AWG	26	2	90 °C	-40 °C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.762 mm	0.03 in	Carolprene	Multi-Conductor	Copper, Bare	Cord and Cordset	Black			3000 "	76.2 m
Prysmian Group 01312.99.01	300 V	16 AWG	30 AWG	26	2	90 °C	-40 °C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.762 mm	0.03 in	Carolprene	Multi-Conductor	Copper, Bare		Black
Prysmian Group 01312.38.01	300 V	16 AWG	30 AWG	26	2	90 °C	-40 °C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.762 mm	0.03 in	Carolprene	Multi-Conductor	Copper, Annealed Bare		Black	152.4 m	500 '
Prysmian Group 01312.38T.01	300 V	16 AWG	30 AWG	26	2	90 °C	-40 °C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.762 mm	0.03 in	Carolprene	Multi-Conductor	Copper, Annealed Bare		Black	152.4 m	500 '
Prysmian Group 01312.35T.01	300 V	16 AWG	30 AWG	26	2	90 °C	-40 °C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.762 mm	0.03 in	Carolprene	Multi-Conductor	Copper, Annealed Bare		Black			3000 "	76.2 m
Prysmian Group 01312.15T.01	300 V	16 AWG	30 AWG	26	2	90 °C	-40 °C	Ethylene Propylene Terpolymer Rubber (EPDM)	0.762 mm	0.03 in	Carolprene	Multi-Conductor	Copper, Bare	Cord and Cordset	Black			3000 "	76.2 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

01312 Series

2 Conductor Multi-Conductor Cable Black 16 AWG 250.0' (76.2m)

Documents

Technical documentation and resources

No documents available
