Description
General part information
PNP7WVFT-91-2K2

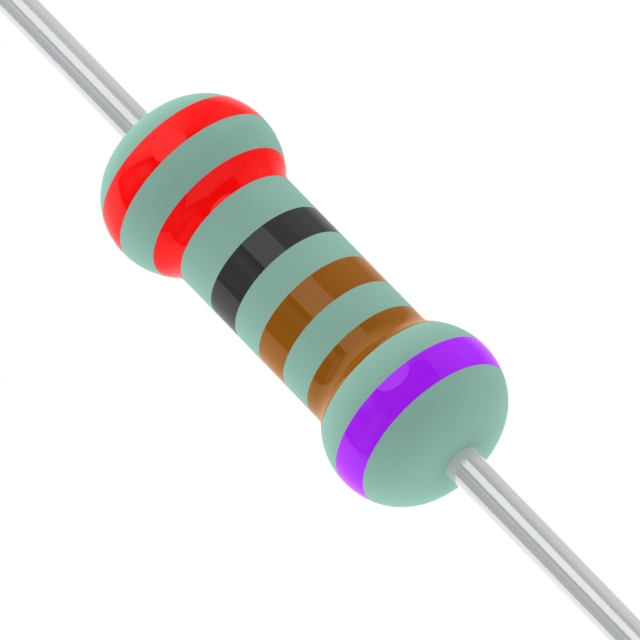

2.2 kOhms ±1% 7W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | PNP7WVFT-91-2K2 |
|---|---|
| Composition | Wirewound |
| Features | Flame Retardant Coating, Safety |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 7 W |
| Resistance | 2.2 kOhm |
| Size / Dimension Diameter | 0.295 in |
| Size / Dimension Length | 0.984 in |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 1 % |
