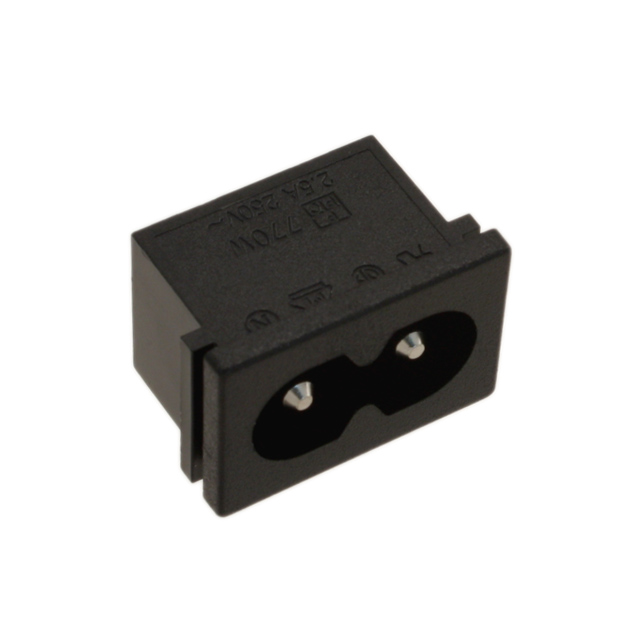

770W-X2/10
ActiveQualtek
PWR ENT RCPT IEC320-C8 PNL SLDR
Deep-Dive with AI
Search across all available documentation for this part.
770W-X2/10
ActiveQualtek
PWR ENT RCPT IEC320-C8 PNL SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 770W-X2/10 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, VDE, CSA |
| Connector Style | Non-Polarized, IEC 320-C8 |
| Connector Type | Receptacle, Male Pins |
| Current Rating - Appliance Inlet | 2.5 A |
| Filter Type | Unfiltered - Commercial |
| Mounting Type | Through Hole, Right Angle, Panel Mount, Snap-In |
| Number of Positions | 2 |
| Panel Thickness | 0.063 in |
| Panel Thickness | 1.6 mm |
| Termination | Solder |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
770W-X2/10
Power Entry Connector Receptacle, Male Pins IEC 320-C8, Non-Polarized Panel Mount, Snap-In; Through Hole, Right Angle
