CBG-IPXLK-SARF3GT-10IN

Active

Lighthorse Technologies, Inc

CBL ASSY MHF1 LK-RPSMA JK-PL 10"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CBG-IPXLK-SARF3GT-10IN

Active

Lighthorse Technologies, Inc

CBL ASSY MHF1 LK-RPSMA JK-PL 10"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.00
		10	$ 11.29
		25	$ 10.67
		50	$ 10.11
		100	$ 9.60
		250	$ 8.73
		500	$ 8.00
		1000	$ 7.38

Description

General part information

CBG-IPXL Series

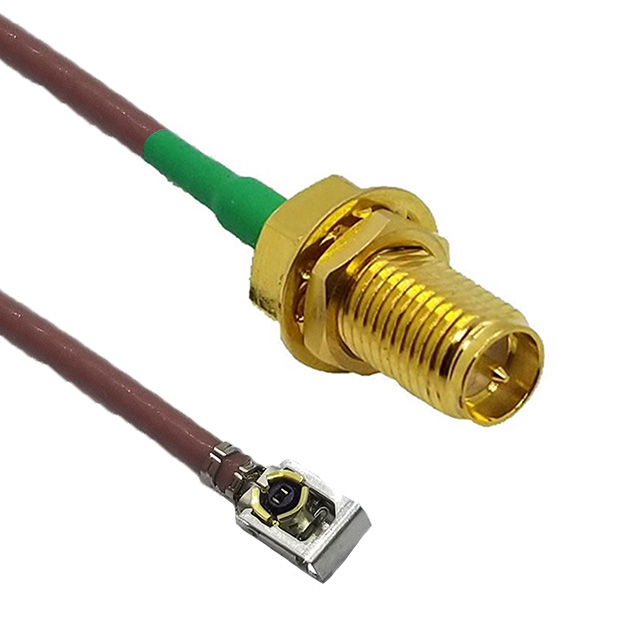

Cable Assembly Coaxial IPEX MHF1 LK to RP-SMA RG-178 10.000" (254.00mm)

Documents

Technical documentation and resources

Datasheet

Specification	CBG-IPXLK-SARF3GT-10IN	CBG-IPXL Series

1st Connector	RP-SMA Jack	SMA Jack, RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Male	Female, Male
2nd Connector	IPEX MHF1 LK (Locking) Plug, Right Angle	I-PEX MHF1 LK (Locking) Plug, Right Angle, IPEX MHF1 LK (Locking) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Cable Impedance	50 Ohms	50 Ohms
Cable Type	RG-178	RG-178
Color	Brown	Brown
Features	Locking	Locking
Frequency - Max [Max]	3 GHz	3 GHz
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Length	10 in	4 - 10 in
Length	254 mm	101.6 - 254 mm
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Impedance	50 Ohms	50 Ohms
Style	-	I-PEX MHF1 LK to SMA, IPEX MHF1 LK to SMA, I-PEX MHF1 LK to RP-SMA

Part	1st Connector Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Frequency - Max [Max]	Overall Impedance	Cable Impedance	Cable Type	Style	1st Connector	2nd Connector Mounting Type	1st Connector Mounting Type	2nd Connector	Color	1st Contact Gender	2nd Contact Gender	Features	Ingress Protection
Lighthorse Technologies, Inc CBG-IPXLK-SAF3GT-4IN	Bulkhead - Front Side Nut	90 °C	-40 °C	4 in	101.6 mm	3 GHz	50 Ohms	50 Ohms	RG-178	I-PEX MHF1 LK to SMA, IPEX MHF1 LK to SMA	SMA Jack	Free Hanging (In-Line)	Panel Mount	I-PEX MHF1 LK (Locking) Plug, Right Angle, IPEX MHF1 LK (Locking) Plug, Right Angle	Brown	Female	Female	Locking
Lighthorse Technologies, Inc CBG-IPXLK-SARF3GT-4IN	Bulkhead - Front Side Nut	90 °C	-40 °C	4 in	101.6 mm	3 GHz	50 Ohms	50 Ohms	RG-178		RP-SMA Jack	Free Hanging (In-Line)	Panel Mount	IPEX MHF1 LK (Locking) Plug, Right Angle	Brown	Male	Female	Locking
Lighthorse Technologies, Inc CBG-IPXLK-SAF3OGTX15-4IN	Bulkhead - Front Side Nut	90 °C	-40 °C	4 in	101.6 mm	3 GHz	50 Ohms	50 Ohms	RG-178	I-PEX MHF1 LK to SMA	SMA Jack	Free Hanging (In-Line)	Panel Mount	I-PEX MHF1 LK (Locking) Plug, Right Angle	Brown	Female	Female	Locking	IP67 - Dust Tight, Waterproof
Lighthorse Technologies, Inc CBG-IPXLK-SARF3GT-10IN	Bulkhead - Front Side Nut	90 °C	-40 °C	10 in	254 mm	3 GHz	50 Ohms	50 Ohms	RG-178		RP-SMA Jack	Free Hanging (In-Line)	Panel Mount	IPEX MHF1 LK (Locking) Plug, Right Angle	Brown	Male	Female	Locking
Lighthorse Technologies, Inc CBG-IPXLK-SARF3OGTX9-10IN	Bulkhead - Front Side Nut	90 °C	-40 °C	10 in	254 mm	3 GHz	50 Ohms	50 Ohms	RG-178	I-PEX MHF1 LK to RP-SMA	RP-SMA Jack	Free Hanging (In-Line)	Panel Mount	I-PEX MHF1 LK (Locking) Plug, Right Angle	Brown	Male	Female	Locking	IP67 - Dust Tight, Waterproof
Lighthorse Technologies, Inc CBG-IPXLK-SAF3OGTX15-10IN	Bulkhead - Front Side Nut	90 °C	-40 °C	10 in	254 mm	3 GHz	50 Ohms	50 Ohms	RG-178	I-PEX MHF1 LK to SMA	SMA Jack	Free Hanging (In-Line)	Panel Mount	I-PEX MHF1 LK (Locking) Plug, Right Angle	Brown	Female	Female	Locking	IP67 - Dust Tight, Waterproof
Lighthorse Technologies, Inc CBG-IPXLK-SAF3OGTX15-6IN	Bulkhead - Front Side Nut	90 °C	-40 °C	6 in	152.4 mm	3 GHz	50 Ohms	50 Ohms	RG-178	I-PEX MHF1 LK to SMA	SMA Jack	Free Hanging (In-Line)	Panel Mount	I-PEX MHF1 LK (Locking) Plug, Right Angle	Brown	Female	Female	Locking	IP67 - Dust Tight, Waterproof
Lighthorse Technologies, Inc CBG-IPXLK-SARF3GT-6IN	Bulkhead - Front Side Nut	90 °C	-40 °C	6 in	152.4 mm	3 GHz	50 Ohms	50 Ohms	RG-178		RP-SMA Jack	Free Hanging (In-Line)	Panel Mount	IPEX MHF1 LK (Locking) Plug, Right Angle	Brown	Male	Female	Locking
Lighthorse Technologies, Inc CBG-IPXLK-SAF3GT-6IN	Bulkhead - Front Side Nut	90 °C	-40 °C	6 in	152.4 mm	3 GHz	50 Ohms	50 Ohms	RG-178	IPEX MHF1 LK to SMA	SMA Jack	Free Hanging (In-Line)	Panel Mount	IPEX MHF1 LK (Locking) Plug, Right Angle	Brown	Female	Female	Locking
Lighthorse Technologies, Inc CBG-IPXLK-SARF3OGTX9-4IN	Bulkhead - Front Side Nut	90 °C	-40 °C	4 in	101.6 mm	3 GHz	50 Ohms	50 Ohms	RG-178	I-PEX MHF1 LK to RP-SMA	RP-SMA Jack	Free Hanging (In-Line)	Panel Mount	I-PEX MHF1 LK (Locking) Plug, Right Angle	Brown	Male	Female	Locking	IP67 - Dust Tight, Waterproof
