XC9536XV-5VQ44C

Active

AMD

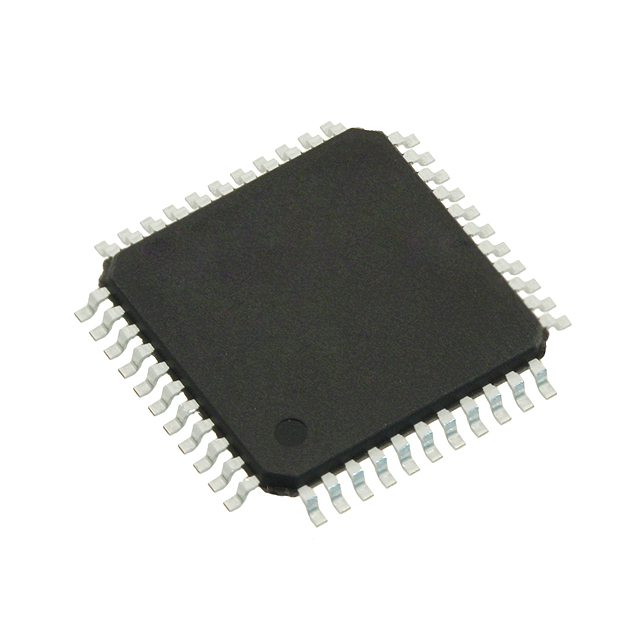

IC CPLD 36MC 5NS 44VQFP

Search across all available documentation for this part.

Active

AMD

IC CPLD 36MC 5NS 44VQFP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XC9536XV-5VQ44C	XC9536XV Series

Delay Time tpd(1) Max [Max]	5 ns	5 - 7.5 ns
Mounting Type	Surface Mount	Surface Mount
Number of Gates	800	800
Number of I/O	34	34
Number of Logic Elements/Blocks	2	2
Number of Macrocells	36	36
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Package / Case	44-TQFP	44-TQFP, 48-FBGA, CSPBGA, 44-LCC (J-Lead)
Programmable Type	In System Programmable	In System Programmable
Supplier Device Package	44-VQFP (10x10)	44-VQFP (10x10), 48-CSBGA (7x7), 44-PLCC (16.59x16.59)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC CPLD 36MC 5NS 44VQFP

Part	Number of Logic Elements/Blocks	Number of I/O	Mounting Type	Supplier Device Package	Programmable Type	Package / Case	Number of Macrocells	Delay Time tpd(1) Max [Max]	Number of Gates	Operating Temperature [Max]
AMD XC9536XV-5VQ44C	2	34	Surface Mount	44-VQFP (10x10)	In System Programmable	44-TQFP	36	5 ns	800	70 °C
AMD XC9536XV-7VQ44C	2	34	Surface Mount	44-VQFP (10x10)	In System Programmable	44-TQFP	36	7.5 ns	800	70 °C
AMD XC9536XV-5CS48C	2		Surface Mount	48-CSBGA (7x7)	In System Programmable	48-FBGA, CSPBGA	36	5 ns	800	70 °C
AMD XC9536XV-5PC44C	2	34	Surface Mount	44-PLCC (16.59x16.59)	In System Programmable	44-LCC (J-Lead)	36	5 ns	800	70 °C
AMD XC9536XV-7CS48C	2		Surface Mount	48-CSBGA (7x7)	In System Programmable	48-FBGA, CSPBGA	36	7.5 ns	800	70 °C
