LDR31650

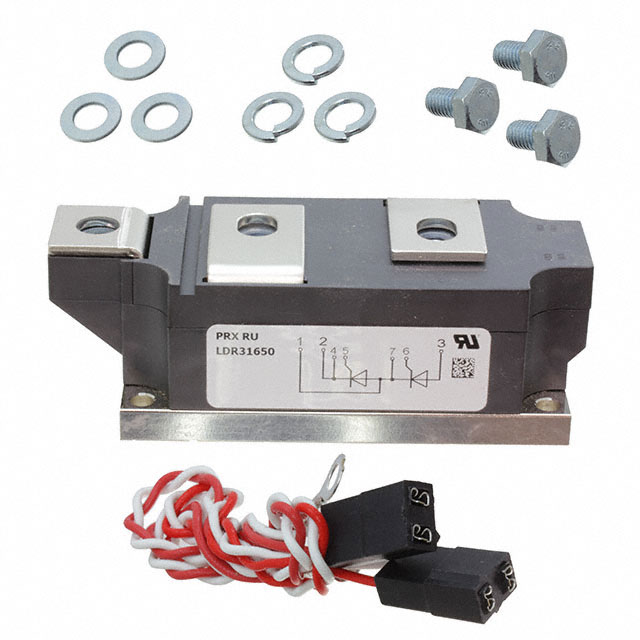

SCR Module 1.8 kV 785 A Series Connection - SCR/Diode Chassis Mount POW-R-BLOK™ Module
Technical Specifications
Parameters and characteristics for this part
| Specification | LDR31650 |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 250 mA |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Non Rep. Surge (Itsm) | 18000 A, 20000 A |
| Current - Non Rep. Surge Frequencies | 60Hz, 50Hz |
| Current - Non Rep. Surge Type | Itsm |
| Current - On State (It (RMS)) (Max) | 785 A |
| Current - On State (Max) | 500 A |
| Mounting Type | Chassis Mount |
| Number of SCRs | 2 count |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | POW-R-BLOK™ Module |
| Structure | Series Connection - SCR/Diode |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Voltage - Off State | 1.8 kV |
