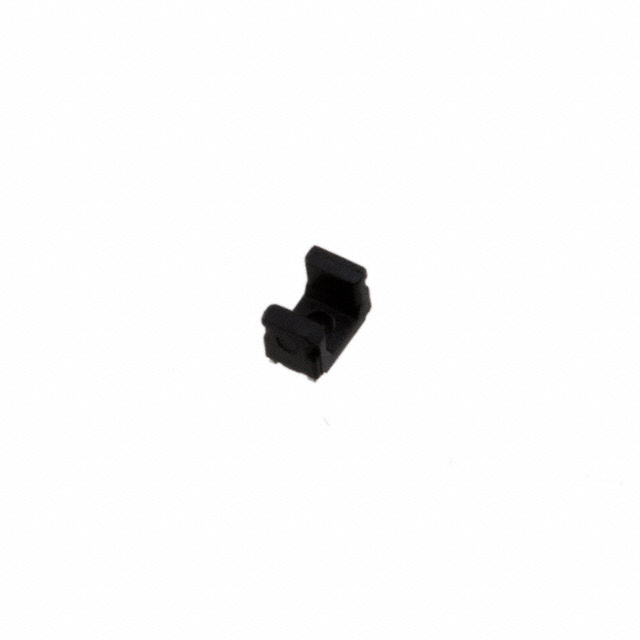

GP1S396HCPSF

Active

SHARP/Socle Technology

SENSOR OPT SLOT NPN MODULE

Search across all available documentation for this part.

Active

SHARP/Socle Technology

SENSOR OPT SLOT NPN MODULE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GP1S396HCPSF	GP1S396 Series

Current - Collector (Ic) (Max) [Max]	20 mA	20 mA
Current - DC Forward (If) (Max) [Max]	30 mA	30 mA
Current - Supply	-	100 µA
Mounting Type	Surface Mount	Surface Mount, Through Hole
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output Configuration	NPN - Open Collector	NPN - Open Collector
Package / Case	Module	Module, Module, Slotted
Response Time	30 µs	30 µs
Sensing Method	Through-Beam	Through-Beam
Voltage - Collector Emitter Breakdown (Max) [Max]	35 V	35 V

SENSOR OPT SLOT NPN MODULE

Part	Output Configuration	Sensing Method	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Current - DC Forward (If) (Max) [Max]	Package / Case	Mounting Type	Current - Supply
SHARP/Socle Technology GP1S396HCPSF	NPN - Open Collector	Through-Beam	30 µs	-25 °C	85 °C	35 V	20 mA	30 mA	Module	Surface Mount
SHARP/Socle Technology GP1S396HCP0F		Through-Beam		-25 °C	85 °C				Module, Slotted	Through Hole	100 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Through-Beam 0.047" (1.2mm) NPN - Open Collector Module
