Description
General part information

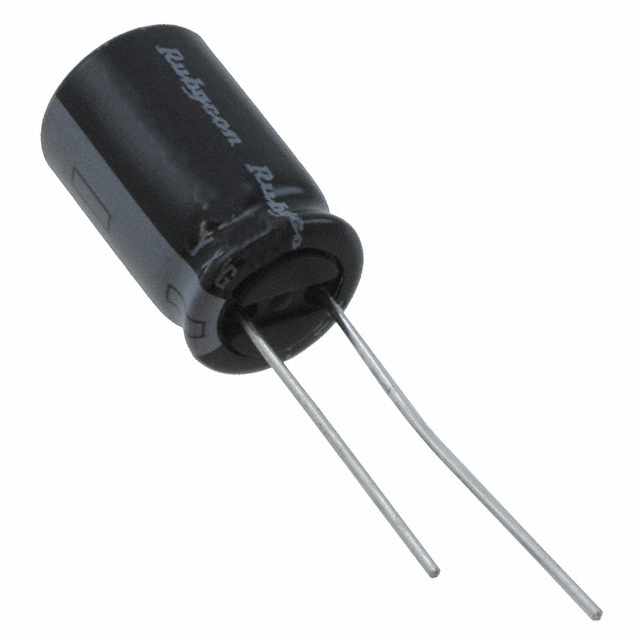

100YXG68MEFCT810X16
68 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 100YXG68MEFCT810X16 |
|---|---|
| Applications | General Purpose |
| Capacitance | 68 µF |
| Height - Seated (Max) | 0.689 in |
| Impedance | 310 mOhm |
| Lead Spacing | 0.197 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 357 mA, 178.5 mA |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 100 VAC/DC |
