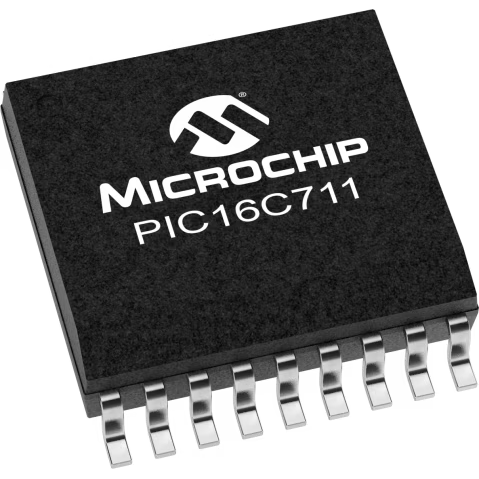

PIC16C711-20E/SO

Active

Microchip Technology

MCU 8-BIT PIC RISC 1.75KB EPROM 5V 18-PIN SOIC W TUBE

Find alt

Alpha

PIC16C711-20E/SO

Active

Microchip Technology

MCU 8-BIT PIC RISC 1.75KB EPROM 5V 18-PIN SOIC W TUBE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

PIC16C711 Series

A newer version of this device is available. Please consider PIC16F716.

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS OTP-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into an 18-pin package and is upwards compatible with the PIC16C5X and PIC12CXXX devices. PIC16C711 features 4 channels of 8-bit Analog-to-Digital (A/D) converter that make it ideal for entry level A/D applications in automotive, industrial, appliances and consumer applications.

Technical Specifications

Parameters and characteristics for this part

Specification	PIC16C711-20E/SO

A/D Channels	4 count
A/D Resolution (bits)	8 bit
Core Processor	PIC
Core Size (Bit Width)	8 Bit
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	External
Package Length	0.295 in
Package Name	18-SOIC
Package Width	7.5 mm
Peripherals	Brown-out Detect, WDT, POR, Reset
Program Memory Depth	1 K
Program Memory Size	1.75 KB
Program Memory Type	OTP
Program Memory Width	14
RAM Size Depth	68
RAM Size Width	8 bit
Speed	20 MHz
Voltage - Supply (Vcc/Vdd) Maximum	6 V
Voltage - Supply (Vcc/Vdd) Minimum	4 V

PIC16C711 Series

Part	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Core Processor	Speed	Operating Temperature (Max)	Operating Temperature (Min)	Program Memory Width	Program Memory Depth	Program Memory Size	Program Memory Type	Package Name	Oscillator Type	Mounting Type	Package Width	Package Length	A/D Channels	A/D Resolution (bits)	RAM Size Width	RAM Size Depth	Core Size (Bit Width)	Peripherals	Package Features
Microchip Technology PIC16C711T-20E/SO	4 V	6 V	PIC	20 MHz	125 °C	-40 °C	14	1 K	1.75 KB	OTP	18-SOIC	External	Surface Mount	7.5 mm	0.295 in	4 count	8 bit	8 bit	68	8 Bit	Brown-out Detect POR Reset WDT
Microchip Technology PIC16C711-20/P	4 V	6 V	PIC	20 MHz	70 °C	0 °C	14	1 K	1.75 KB	OTP	18-DIP 18-PDIP	External	Through Hole	7.62 mm	0.3 in	4 count	8 bit	8 bit	68	8 Bit	Brown-out Detect POR Reset WDT
Microchip Technology PIC16C711-04I/SO	4 V	6 V	PIC	4 MHz	85 °C	-40 °C	14	1 K	1.75 KB	OTP	18-SOIC	External	Surface Mount	7.5 mm	0.295 in	4 count	8 bit	8 bit	68	8 Bit	Brown-out Detect POR Reset WDT
Microchip Technology PIC16C711/JW	4 V	6 V	PIC	20 MHz	70 °C	0 °C	14	1 K	1.75 KB	EPROM UV	18-CDIP 18-CerDIP	External	Through Hole	7.62 mm	0.3 in	4 count	8 bit	8 bit	68	8 Bit	Brown-out Detect POR Reset WDT	Window
Microchip Technology PIC16C711T-20/SO	4 V	6 V	PIC	20 MHz	70 °C	0 °C	14	1 K	1.75 KB	OTP	18-SOIC	External	Surface Mount	7.5 mm	0.295 in	4 count	8 bit	8 bit	68	8 Bit	Brown-out Detect POR Reset WDT
Microchip Technology PIC16C711-04/SS	4 V	6 V	PIC	4 MHz	70 °C	0 °C	14	1 K	1.75 KB	OTP	20-SSOP	External	Surface Mount	5.3 mm	0.209 in	4 count	8 bit	8 bit	68	8 Bit	Brown-out Detect POR Reset WDT
Microchip Technology PIC16LC711T-04/SS	2.5 V	6 V	PIC	4 MHz	70 °C	0 °C	14	1 K	1.75 KB	OTP	20-SSOP	External	Surface Mount	5.3 mm	0.209 in	4 count	8 bit	8 bit	68	8 Bit	Brown-out Detect PWM Reset WDT
Microchip Technology PIC16C711-04E/SO	4 V	6 V	PIC	4 MHz	125 °C	-40 °C	14	1 K	1.75 KB	OTP	18-SOIC	External	Surface Mount	7.5 mm	0.295 in	4 count	8 bit	8 bit	68	8 Bit	Brown-out Detect POR Reset WDT
Microchip Technology PIC16LC711-04/P	2.5 V	6 V	PIC	4 MHz	70 °C	0 °C	14	1 K	1.75 KB	OTP	18-DIP 18-PDIP	External	Through Hole	7.62 mm	0.3 in	4 count	8 bit	8 bit	68	8 Bit	Brown-out Detect PWM Reset WDT
Microchip Technology PIC16C711T-04I/SO	4 V	6 V	PIC	4 MHz	85 °C	-40 °C	14	1 K	1.75 KB	OTP	18-SOIC	External	Surface Mount	7.5 mm	0.295 in	4 count	8 bit	8 bit	68	8 Bit	Brown-out Detect POR Reset WDT
