9728 060100
ActiveBelden Inc.
MULTI-PAIR 8COND 24AWG CHROME
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9728 060100
ActiveBelden Inc.
MULTI-PAIR 8COND 24AWG CHROME
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9728 060100 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Foam Polyethylene (FPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 9.22 mm |
| Jacket (Insulation) Diameter [diameter] | 0.363 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.048 in |
| Jacket (Insulation) Thickness | 1.219 mm |
| Jacket Color | Chrome |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 8 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style 2919 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 100 | $ 8.02 | |
| 200 | $ 7.62 | |||
| 300 | $ 7.39 | |||
| 500 | $ 7.12 | |||
| 700 | $ 6.94 | |||
| 1000 | $ 6.75 | |||
Description
General part information
9728 Series

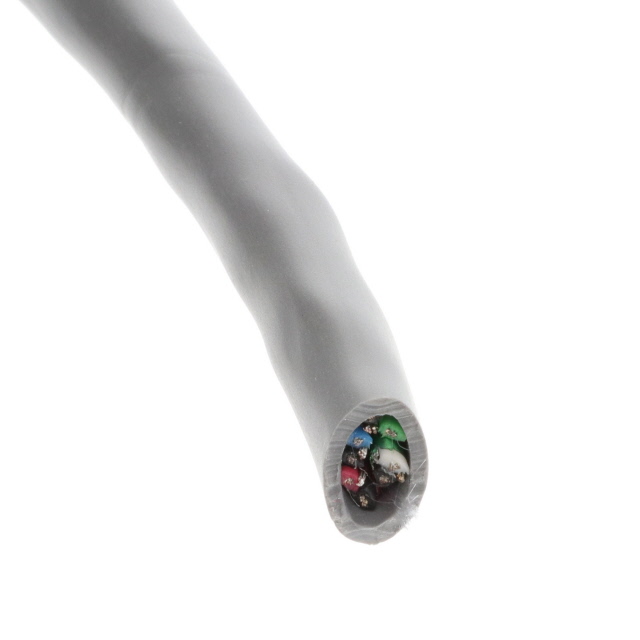

8 (4 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil 100.0' (30.5m)
