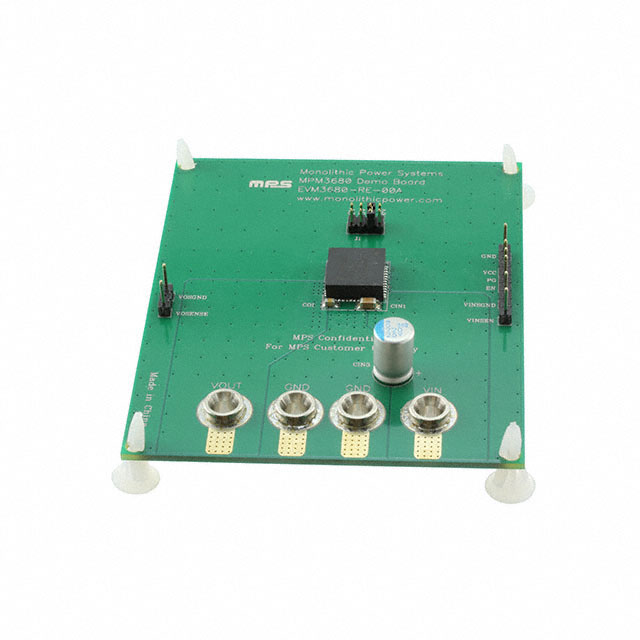

EVM3680-RE-00A
MONOLITHIC POWER SYSTEMS (MPS)
EVAL BOARD FOR MPM3680
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EVM3680-RE-00A
MONOLITHIC POWER SYSTEMS (MPS)
EVAL BOARD FOR MPM3680
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EVM3680-RE-00A |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 6 A |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MPM3680 |
| Voltage - Input [Max] | 18 V |
| Voltage - Input [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 24.00 | |
Description
General part information
EVM3680-RE-00A
MPM3680 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Documents
Technical documentation and resources
