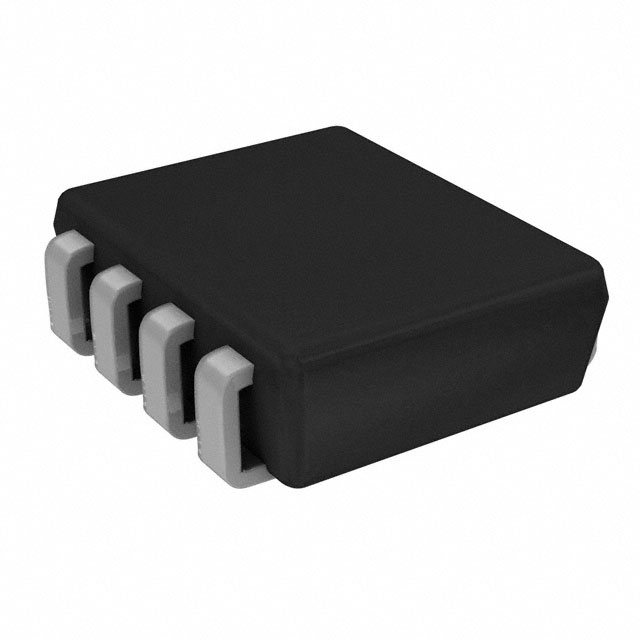

AAT3258ITS-3.3-R

Active

Skyworks Solutions Inc.

IC REG LINEAR 3.3V 300MA 8TSOPJW

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

IC REG LINEAR 3.3V 300MA 8TSOPJW

Technical Specifications

Parameters and characteristics for this part

Specification	AAT3258ITS-3.3-R

Control Features	Manual Reset, Enable
Current - Output	300 mA
Current - Quiescent (Iq)	125 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	8-TSSOJ
Package / Case	2.4 mm, 0.094 in
Protection Features	Over Temperature, Over Current, Short Circuit
PSRR [Max]	67 dB
PSRR [Min]	45 dB
Supplier Device Package	8-TSOPJW
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	3.3 V
Voltage Dropout (Max) [Max]	0.4 V

Part	Control Features	PSRR [Max]	PSRR [Min]	Current - Output	Current - Quiescent (Iq)	Output Type	Output Configuration	Voltage Dropout (Max) [Max]	Package / Case	Package / Case	Supplier Device Package	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Protection Features	Number of Regulators
Skyworks Solutions Inc. AAT3258ITS-3.3-R	Enable Manual Reset	67 dB	45 dB	300 mA	125 µA	1.81 mOhm	Positive	0.4 V	8-TSSOJ	0.094 in 2.4 mm	8-TSOPJW	5.5 V	3.3 V	Surface Mount	85 °C	-40 °C	Over Current Over Temperature Short Circuit	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 8-TSOPJW

Technical documentation and resources

No documents available
