Description
General part information
09251306571

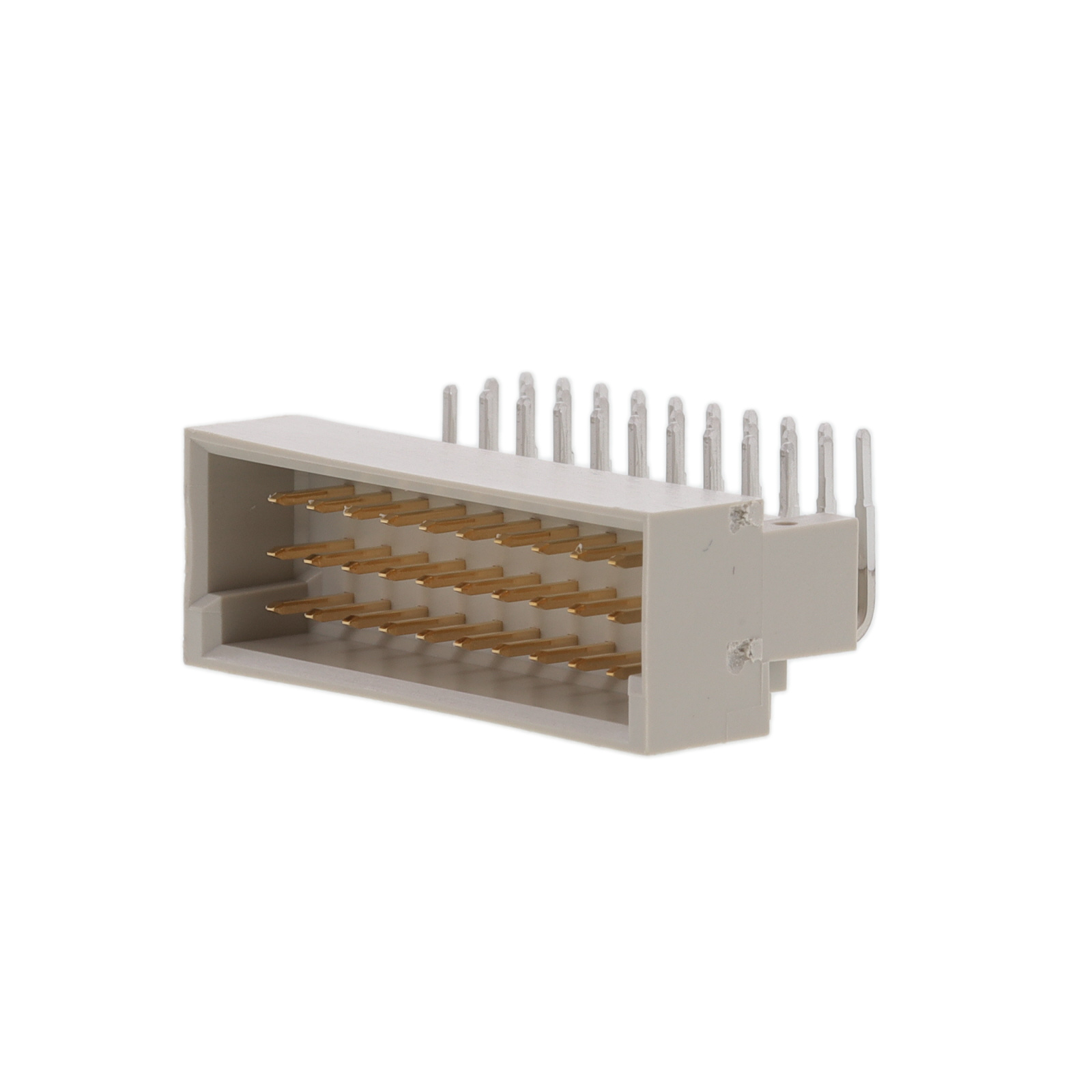

30 Position Din Connector Header, Male Pins Gold Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 09251306571 |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Level, Class | 2 |
| Material - Insulation | Glass Filled, Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Pitch | 0.1 in |
| Style | 3C |
| Termination | Solder |
