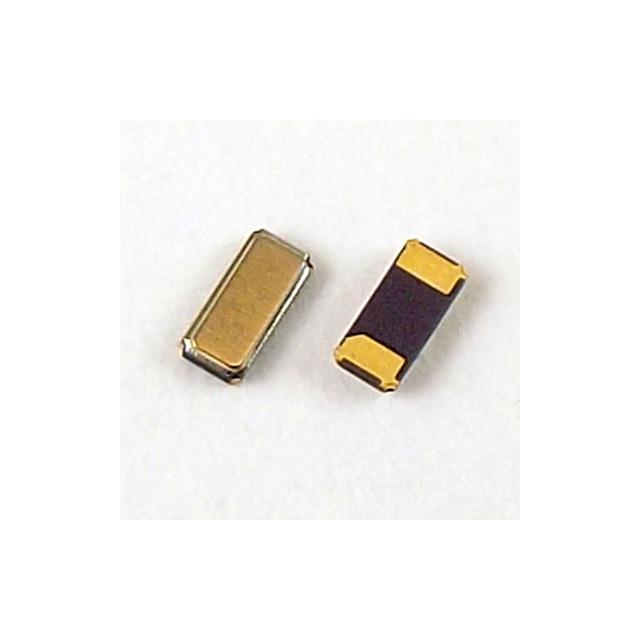

CS31-32.768K-12.5
ActiveTransko Electronics, Inc.
SMD 3.2X1.5MM, 2-PAD, 12.5PF
CS31-32.768K-12.5
ActiveTransko Electronics, Inc.
SMD 3.2X1.5MM, 2-PAD, 12.5PF
Description
General part information
CS31-32.768K-12.5
32.768 kHz ±20ppm Crystal 12.5pF 80 kOhms 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CS31-32.768K-12.5 |
|---|---|
| ESR (Equivalent Series Resistance) | 80 kOhm |
| Frequency | 0.032768 MHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) | 0.031 in |
| Load Capacitance | 12.5 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | No Lead, 2-SMD |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.059 in |
| Type | kHz Crystal (Tuning Fork) |
