N800C-80-80-1.5
ActiveShiu Li Technology Co., Ltd.
NON-SILICONE THERMAL CONDUCTIVE
N800C-80-80-1.5
ActiveShiu Li Technology Co., Ltd.
NON-SILICONE THERMAL CONDUCTIVE
Description
General part information
N800C-80-80-1.5

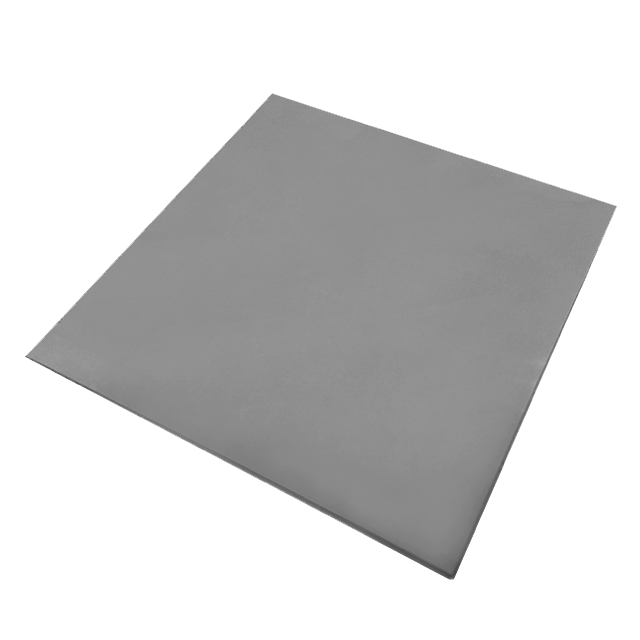

Thermal Pad Gray 80.00mm x 80.00mm Square Tacky - Both Sides
Technical Specifications
Parameters and characteristics for this part
| Specification | N800C-80-80-1.5 |
|---|---|
| Adhesive | Tacky - Both Sides |
| Color | Gray |
| Material | Non-Silicone |
| Outline Length | 80 mm |
| Outline Width | 80 mm |
| Shape | Square |
| Shelf Life | 120 Months |
| Shelf Life Start | Date of Shipment |
| Storage/Refrigeration Temperature | Room Temperature |
| Thermal Conductivity | 17 W/m-K |
| Thickness | 0.059 in |
| Type | Sheet, Conductive Pad |
| Usage | Thermally Conductive |
