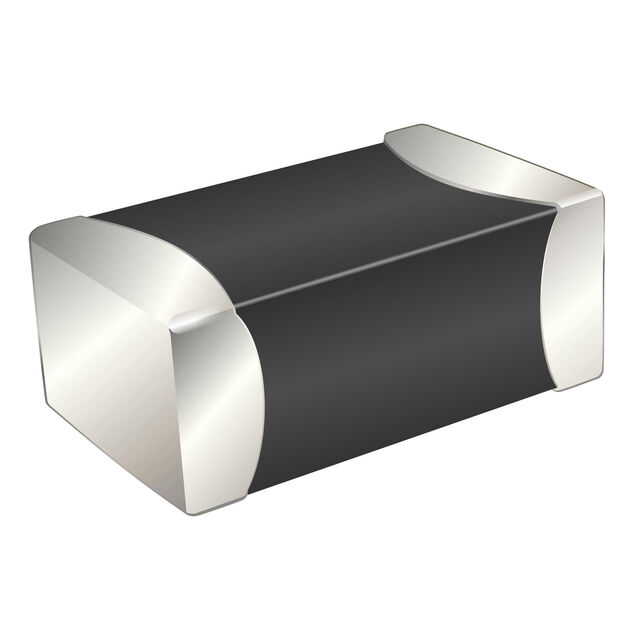

MFPI160808G-2R2MT-CT
2.2 µH Unshielded Multilayer Inductor 750 mA 300mOhm 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MFPI160808G-2R2MT-CT |
|---|---|
| Current Rating | 0.75 A |
| DC Resistance (DCR) | 300 mOhm |
| Frequency - Self Resonant | 50 MHz |
| Height - Seated (Max) | 0.037 in |
| Inductance | 2.2 µH |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
| Tolerance | 20 % |
| Type | Multilayer |
