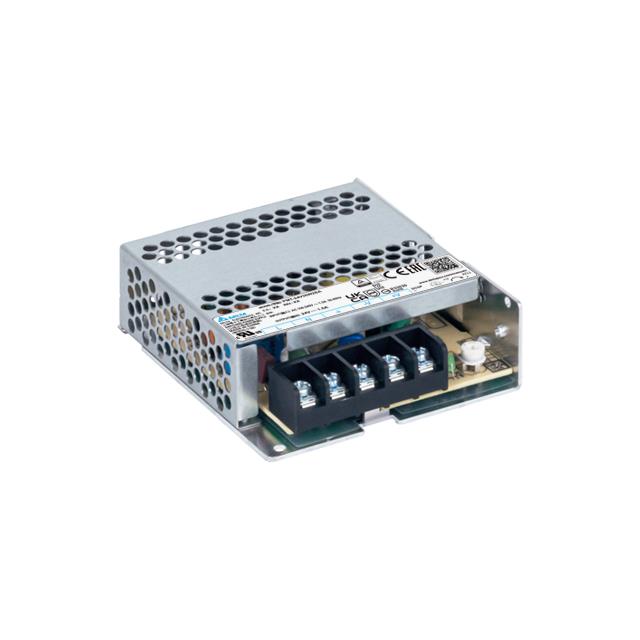

PMT-24V35W2BA
ActiveDelta Electronics
AC/DC CONVERTER 24V 35W
PMT-24V35W2BA
ActiveDelta Electronics
AC/DC CONVERTER 24V 35W
Description
General part information
PMT-24V35W2BA
Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PMT-24V35W2BA |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | TUV, UKCA, cURus, EAC, CE, KC, CB |
| Current - Output 1 | 1.5 A |
| Efficiency | 88.5 % |
| Features | Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 35 W |
| Size / Dimension Height | 1.14 in |
| Size / Dimension Length | 3.9 in |
| Size / Dimension Width | 3.23 in |
| Standard Number | 60950-1, 62368-1, 60335-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 24 V |
