031-6051

Active

Amphenol RF

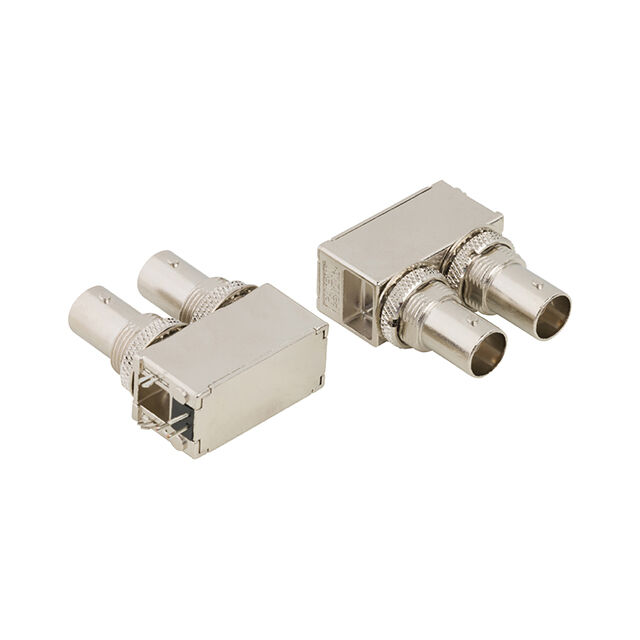

CONN BNC JACK R/A 75 OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

031-6051

Active

Amphenol RF

CONN BNC JACK R/A 75 OHM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-6051

Body Finish	Nickel
Body Material	Zinc Die Cast
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polypropylene (PP)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	75 Ohms
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	2
Shield Termination	Solder
Voltage Rating	500 V

031-60 Series

Part	Mounting Type	Center Contact Material	Housing Color	Mating Cycles	Body Material	Impedance	Voltage Rating	Number of Ports	Frequency - Max [Max]	Connector Type	Shield Termination	Cable Group	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Body Finish	Center Contact Plating	Dielectric Material	Includes	Fastening Type	Insertion Loss	Mounting Feature
Amphenol RF 031-6033	Free Hanging (In-Line)	Phosphor Bronze	Silver	500	Brass	50 Ohms	500 V	1	11 GHz	Female Socket Plug	Crimp	Belden 9913 Belden 9914 LMR-400	RP-TNC	-65 ░C	165 °C	Crimp	Nickel	Gold	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule
Amphenol RF 031-6004-RFX	Free Hanging (In-Line) Right Angle	Brass	Silver	500	Brass	50 Ohms	500 V	1	4 GHz	Male Pin Plug	Crimp	Belden 9913 Belden 9914 LMR-400	BNC	-65 ░C	165 °C	Solder	Nickel	Gold	Polyoxymethylene (POM) Acetal	1 Connector 1 End Cap 1 Ferrule	Bayonet Lock	0.2 dB
Amphenol RF 031-6036	Free Hanging (In-Line)	Phosphor Bronze	Silver	500	Brass	50 Ohms	500 V	1	4 GHz	Female Socket Plug	Crimp	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	RP-BNC	-65 ░C	165 °C	Crimp	Nickel	Gold	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule	Bayonet Lock	0.2 dB
Amphenol RF 031-6035	Free Hanging (In-Line)	Brass	Silver	500	Brass	50 Ohms	500 V	1	4 GHz	Jack Male Pin	Crimp	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	RP-BNC	-65 ░C	165 °C	Crimp	Nickel	Gold	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule	Bayonet Lock	0.2 dB
Amphenol RF 031-6051	Panel Mount Right Angle Through Hole	Phosphor Bronze	Silver	500	Zinc Die Cast	75 Ohms	500 V	2	500 MHz	Female Socket Jack	Solder		BNC			Solder	Nickel	Gold	Polypropylene (PP)		Bayonet Lock	0.2 dB	Bulkhead - Front Side Nut
Amphenol RF 031-6006	Free Hanging (In-Line)	Brass	Silver	500	Brass	50 Ohms	500 V	1	4 GHz	Male Pin Plug	Crimp	Belden 9258 LMR-240	BNC	-65 ░C	165 °C	Crimp	Nickel	Gold	Polytetrafluoroethylene (PTFE)		Bayonet Lock	0.2 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 11.25

Description

General part information

031-60 Series

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
