MAX11205PMB1#
ActiveAnalog Devices Inc./Maxim Integrated
MODULE PERIPHERAL FOR MAX11205
Deep-Dive with AI
Search across all available documentation for this part.
MAX11205PMB1#
ActiveAnalog Devices Inc./Maxim Integrated
MODULE PERIPHERAL FOR MAX11205
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX11205PMB1# | MAX11205 Series |
|---|---|---|
| Architecture | - | Sigma-Delta |
| Configuration | - | ADC |
| Data Interface | Serial | Serial |
| Input Type | - | Differential |
| Mounting Type | - | Surface Mount |
| Number of A/D Converters | 1 | 1 |
| Number of Bits | 16 | 16 |
| Number of Inputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 10-MSOP, 10-TFSOP |
| Package / Case | - | 3 mm |
| Package / Case | - | 0.118 in |
| Reference Type | - | External |
| Sampling Rate (Per Second) | 120 Per Second | 13.75 - 120 Per Second |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-uMAX/uSOP |
| Utilized IC / Part | MAX11205 | MAX11205 |
| Voltage - Supply, Analog | - | 2.7 V |
| Voltage - Supply, Analog | - | 3.6 V |
| Voltage - Supply, Digital | - | 3.6 V |
| Voltage - Supply, Digital | - | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 52.68 | |
MAX11205 Series
MODULE PERIPHERAL FOR MAX11205
| Part | Number of A/D Converters | Utilized IC / Part | Supplied Contents | Number of Bits | Data Interface | Sampling Rate (Per Second) | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Package / Case | Package / Case [x] | Package / Case [x] | Operating Temperature [Max] | Operating Temperature [Min] | Configuration | Number of Inputs | Supplier Device Package | Input Type | Architecture | Mounting Type | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Reference Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX11205PMB1# | 1 | MAX11205 | Board(s) | 16 | Serial | 120 Per Second | ||||||||||||||||
Analog Devices Inc./Maxim Integrated MAX11205BEUB+T | 1 | 16 | Serial | 13.75 | 3.6 V | 1.7 V | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | 85 °C | -40 °C | ADC | 1 | 10-uMAX/uSOP | Differential | Sigma-Delta | Surface Mount | 2.7 V | 3.6 V | External | ||
Analog Devices Inc./Maxim Integrated MAX11205AEUB+T | 1 | 16 | Serial | 120 Per Second | 3.6 V | 1.7 V | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | 85 °C | -40 °C | ADC | 1 | 10-uMAX/uSOP | Differential | Sigma-Delta | Surface Mount | 2.7 V | 3.6 V | External | ||
Analog Devices Inc./Maxim Integrated MAX11205AEUB+ | 1 | 16 | Serial | 120 Per Second | 3.6 V | 1.7 V | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | 85 °C | -40 °C | ADC | 1 | 10-uMAX/uSOP | Differential | Sigma-Delta | Surface Mount | 2.7 V | 3.6 V | External | ||
Analog Devices Inc./Maxim Integrated MAX11205BEUB+ | 1 | 16 | Serial | 13.75 | 3.6 V | 1.7 V | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | 85 °C | -40 °C | ADC | 1 | 10-uMAX/uSOP | Differential | Sigma-Delta | Surface Mount | 2.7 V | 3.6 V | External |
Description
General part information
MAX11205 Series

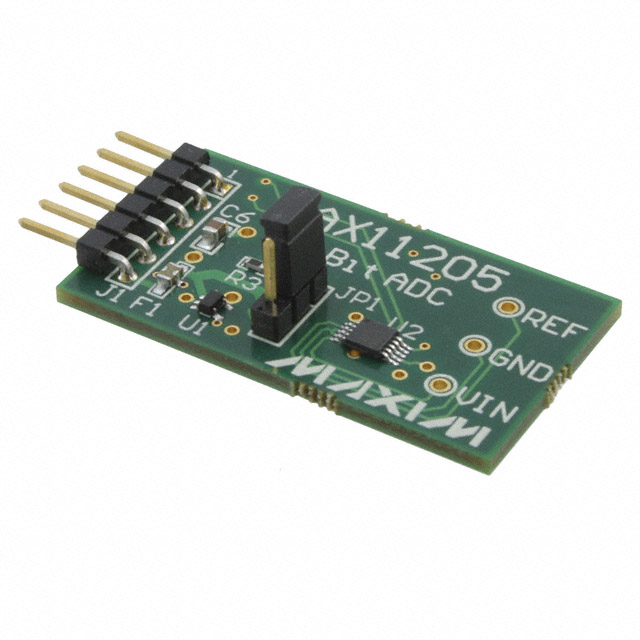

MAX11205 - 16 Bit 120 Samples per Second Analog to Digital Converter (ADC) Evaluation Board
