UES1103SM
ActiveMicrochip Technology

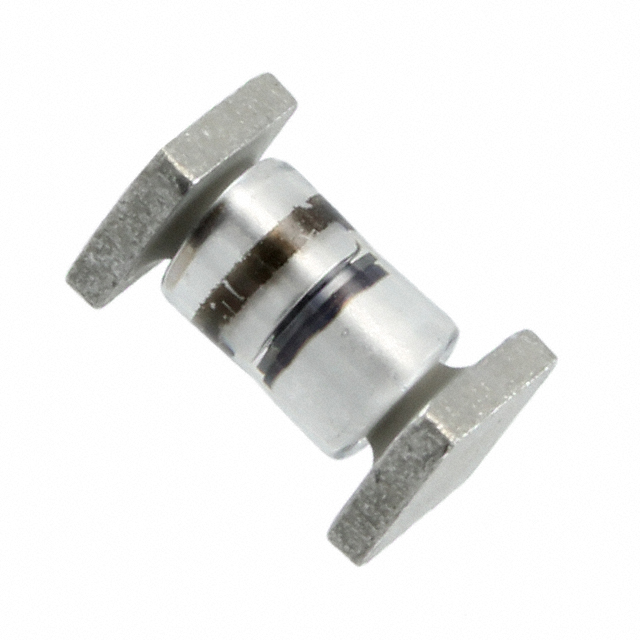

RECTIFIER DIODE SWITCHING 2-PIN 2.5A, 100V, 25NS A-MELF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsUES1101SM_UES1106SM
UES1103SM
ActiveMicrochip Technology
RECTIFIER DIODE SWITCHING 2-PIN 2.5A, 100V, 25NS A-MELF
Deep-Dive with AI
DocumentsUES1101SM_UES1106SM
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UES1103SM | UES1102SM-Rectifier Series |
|---|---|---|
| - | - | |
| Capacitance @ Vr, F | - | 3.5 pF |
| Current - Reverse Leakage @ Vr | - | 2 µA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature - Junction | - | 150 - 175 °C |
| Operating Temperature - Junction [Max] | 175 °C | 175 °C |
| Reverse Recovery Time (trr) | 25 ns | 25 ns |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | A-MELF | A-MELF, A, SQ-MELF |
| Technology | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | - | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 975 mV | 975 - 980 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.45 | |
| 100 | $ 19.01 | |||
| Microchip Direct | N/A | 1 | $ 20.45 | |
UES1102SM-Rectifier Series
Rectifier Diode Switching 2-Pin 2.5A, 100V, 25ns A-MELF
| Part | Supplier Device Package | Operating Temperature - Junction [Max] | Technology | Reverse Recovery Time (trr) | Voltage - Forward (Vf) (Max) @ If | Speed | Mounting Type | Operating Temperature - Junction | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Voltage - DC Reverse (Vr) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology UES1103SM | A-MELF | 175 °C | Standard | 25 ns | 975 mV | 200 mA, 500 ns | Surface Mount | ||||
Microchip Technology UES1103SME3 | |||||||||||
Microchip Technology UES1103SM/TR | |||||||||||
Microchip Technology UES1102SM | A-MELF | Standard | 25 ns | 200 mA, 500 ns | Surface Mount | 150 °C | 2 µA | 3.5 pF | 100 V | ||
Microchip Technology UES1103SME3/TR | A, SQ-MELF | Standard | 25 ns | 975 mV | 200 mA, 500 ns | Surface Mount | 175 °C | ||||
Microchip Technology UES1102SM/TR | |||||||||||
Microchip Technology UES1103SM/TR | A, SQ-MELF | Standard | 25 ns | 980 mV | 200 mA, 500 ns | Surface Mount | 175 °C | ||||
Microchip Technology UES1103SM-1 | A, SQ-MELF | Standard | 25 ns | 980 mV | 200 mA, 500 ns | Surface Mount |
Description
General part information
UES1102SM-Rectifier Series
An axial leaded power rectifier useful in many switching applications. Particulary suited where very fast recovery amd low forward voltage are required.
