GPHC3.0-0.125-02-0816

Active

Bergquist

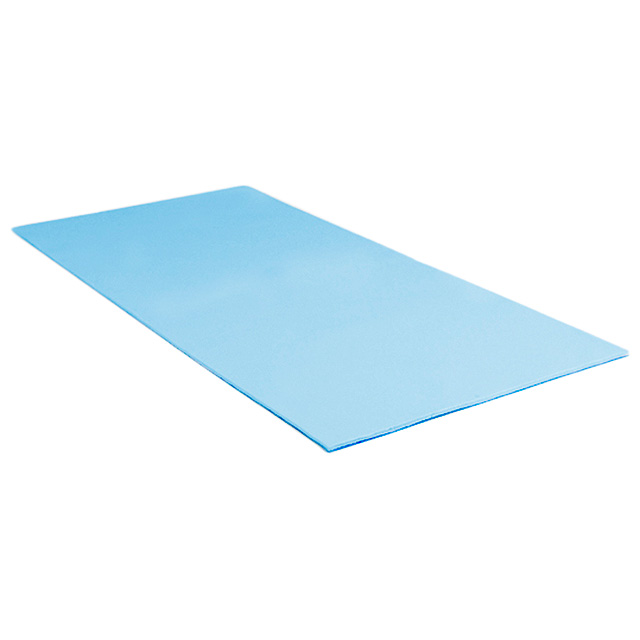

THERM PAD 406.4X203.2MM BLUE

Search across all available documentation for this part.

Active

Bergquist

THERM PAD 406.4X203.2MM BLUE

Technical Specifications

Parameters and characteristics commom to parts in this series

THERM PAD 406.4X203.2MM BLUE

Part	Type	Adhesive	Thickness	Thickness	Outline [x]	Outline [y]	Thermal Conductivity	Shape	Backing, Carrier	Color	Shelf Life
Bergquist GPHC3.0-0.125-02-0816	Gap Filler Pad, Sheet	Tacky - Both Sides	0.125 in	3.18 mm	406.4 mm	203.2 mm	3 W/m-K	Rectangular	Fiberglass	Blue
Bergquist GPHC3.0-0.080-02-0816	Gap Filler Pad, Sheet	Tacky - Both Sides	0.08 "	80 mils	406.4 mm	203.2 mm	3 W/m-K	Rectangular	Fiberglass	Blue
Bergquist GPHC3.0-0.100-02-0816	Gap Filler Pad, Sheet	Tacky - Both Sides	0.1 in	2.54 mm	406.4 mm	203.2 mm	3 W/m-K	Rectangular	Fiberglass	Blue
Bergquist GPHC3.0-0.060-02-0816	Gap Filler Pad, Sheet	Tacky - Both Sides	0.06 in	1.524 mm	406.4 mm	203.2 mm	3 W/m-K	Rectangular	Fiberglass	Blue
Bergquist GPHC3.0-0.020-02-0816	Gap Filler Pad, Sheet	Tacky - Both Sides	0.02 in	0.508 mm	406.4 mm	203.2 mm	3 W/m-K	Rectangular	Fiberglass	Blue	12 Months

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 167.05
