1013766

Active

Phoenix Contact

LABEL STANDARD 0.16" X 0.39" YLW

Search across all available documentation for this part.

Active

Phoenix Contact

LABEL STANDARD 0.16" X 0.39" YLW

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1013766	PABA Series

Cable Diameter	-	0.024 - 1.969 in
Cable Diameter	-	0.6 - 50 mm
Color	Yellow	Yellow, White, Red
For Use With/Related Products	CMS MCP 3 Plotter	CMS MCP 3 Plotter
Label Size [x]	4 mm	4 mm
Label Size [x]	0.16 in	0.16 in
Label Size [y]	0.39 in	0.39 - 0.91 in
Label Size [y]	10 mm	10 - 23 mm
Label Type	Standard	Standard, Custom Configurable
Legend	-	Blank
Material	ABS	ABS
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-15 °C	-15 °C
Size	-	4 mm
Size	-	15 mm
Size	-	0.59 in
Size	-	0.16 "
Type	-	Wire Marker, Clip-On

LABEL STANDARD 0.16" X 0.39" YLW

Part	For Use With/Related Products	Label Type	Label Size [y]	Label Size [x]	Label Size [x]	Label Size [y]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Material	Type	Legend	Cable Diameter [diameter]	Cable Diameter [diameter]	Size [x]	Size [y]	Size [y]	Size [x]
Phoenix Contact 1013766	CMS MCP 3 Plotter	Standard	0.39 in	4 mm	0.16 in	10 mm	Yellow	-15 °C	65 °C	ABS
Phoenix Contact 1013782	CMS MCP 3 Plotter	Standard	0.91 "	4 mm	0.16 in	23 mm	Yellow	-15 °C	65 °C	ABS
Phoenix Contact 0824443		Custom Configurable, Standard	0.39 in	4 mm	0.16 in	10 mm	White	-15 °C	65 °C	ABS
Phoenix Contact 1013944	CMS MCP 3 Plotter	Standard	0.59 "	4 mm	0.16 in	15 mm	Red	-15 °C	65 °C	ABS
Phoenix Contact 0824444							White	-15 °C	65 °C	ABS	Wire Marker, Clip-On	Blank	0.024 in, 1.969 in	0.6 mm, 50 mm	4 mm	15 mm	0.59 in	0.16 "
Phoenix Contact 1013753	CMS MCP 3 Plotter	Standard	0.39 in	4 mm	0.16 in	10 mm	White	-15 °C	65 °C	ABS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

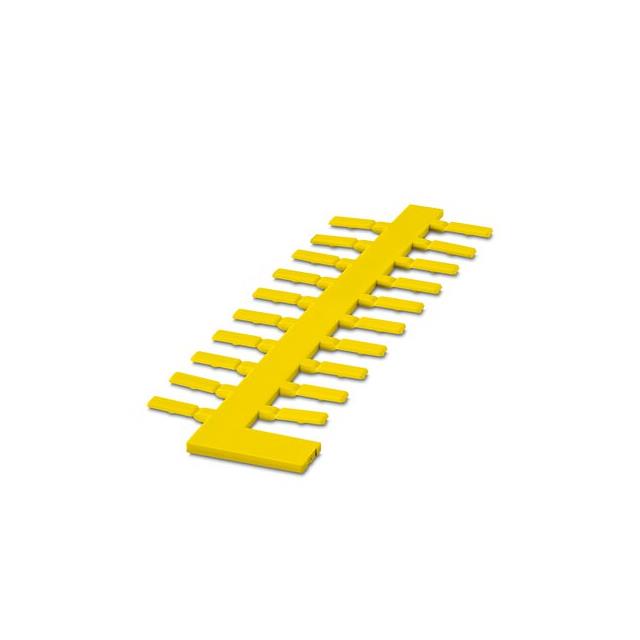

Yellow Standard Label 0.16" x 0.39" (4.0mm x 10.0mm)

Technical documentation and resources
