FMCA2014-12
ActiveFairview Microwave
CBL ASSY 7/16 DINPLUG-NEX10PLUG
FMCA2014-12
ActiveFairview Microwave
CBL ASSY 7/16 DINPLUG-NEX10PLUG
Description
General part information
FMCA2014-12

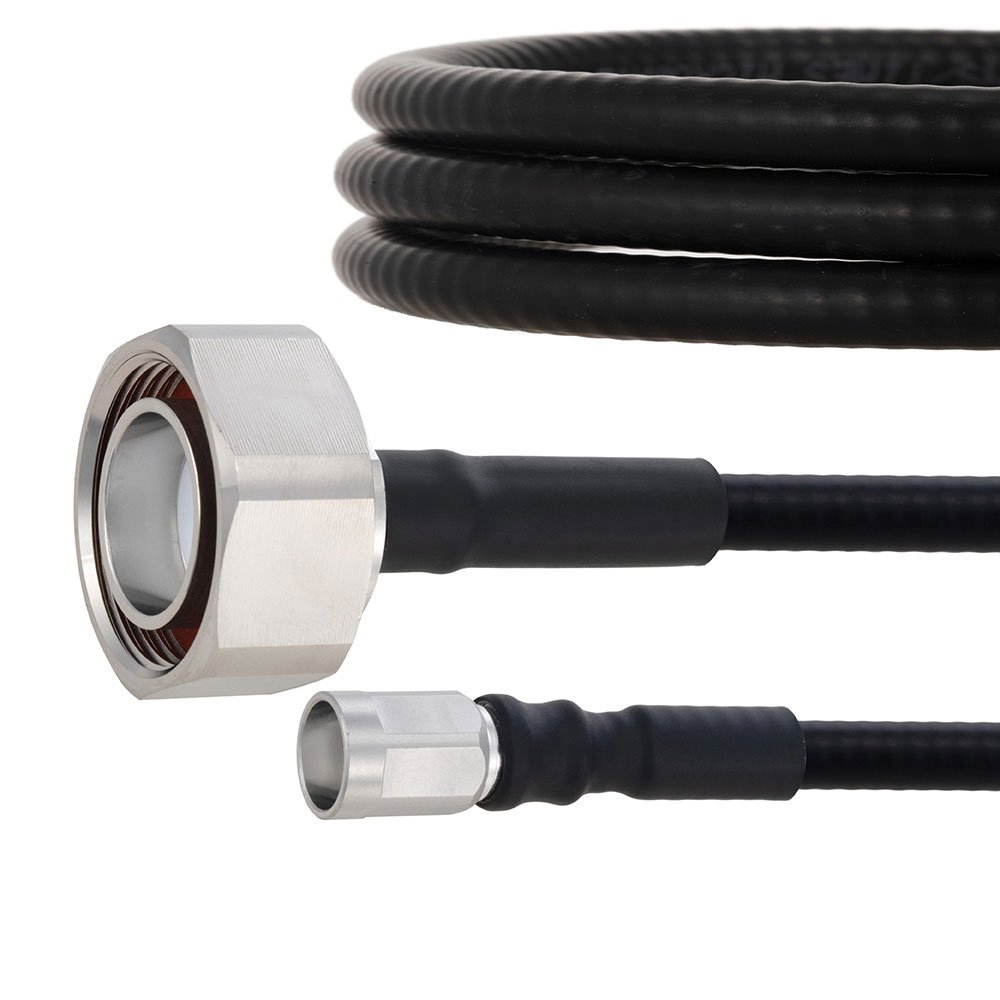

Cable Assembly Coaxial 7/16 DIN to NEX SPO-250 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2014-12 |
|---|---|
| 1st Connector | 7/16 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 7 mm |
| 1st Connector Dimension (2) | 16 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | NEX10 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPO |
| Cable Type Size | 250 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | 7/16 DIN to NEX |
